DIN Hydraulic Male Stud Non Return Valve with Elastomer Seal - Carbon Steel
DIN Hydraulic Male Stud Non Return Valve with Elastomer Seal - Carbon Steel
SKU:VAL-6fee65
Reliable DIN Hydraulic Male Stud Non Return Valve with Elastomer Seal for light-duty hydraulic systems. Nominal operating pressure of 250 bar.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DIN Hydraulic Male Stud Non Return Valve with Elastomer Seal - Carbon Steel
$59.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Male Stud Non Return Valve with Elastomer Seal - Carbon Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

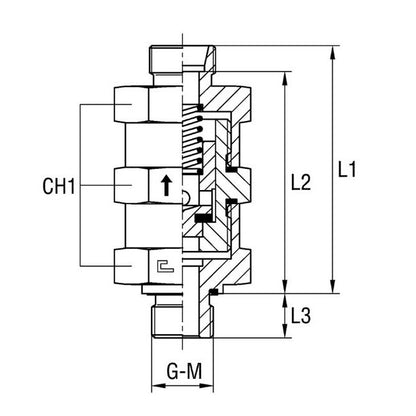

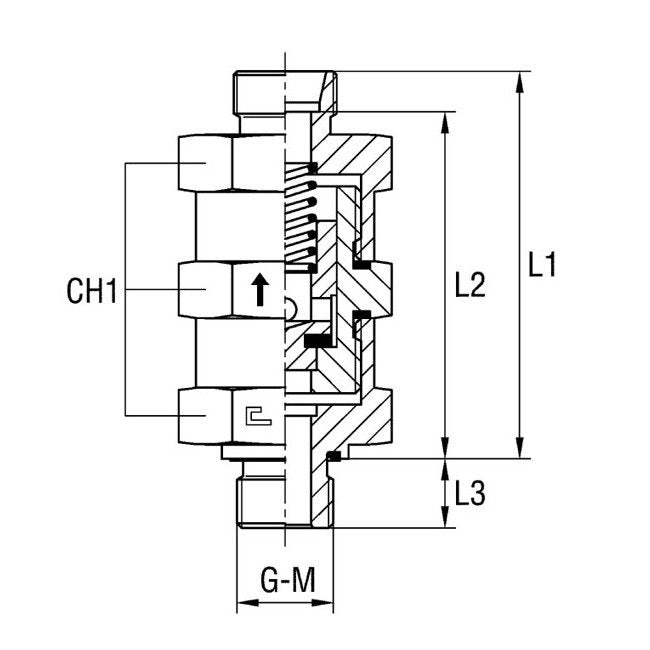

The DIN Hydraulic Male Stud Non Return Valve with Elastomer Seal ensures reliable operation in light-duty hydraulic systems with a nominal operating pressure of 250 bar. Crafted from durable carbon steel, this valve features a 10.0mm tube diameter, 1/4 G-thread size, and 4mm pass diameter. With precise measurements like L1 of 61.0mm, L2 of 54.0mm, and CH1 of 19.0mm, this valve offers seamless integration and optimal performance. Compliant with stringent industry standards, it is an ideal choice for hydraulic check valve applications.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L1
61.0 mm
Specifications L2
54.0 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
