DIN Hydraulic Non Return Valve, Male Stud BSP Parallel - Body Only

Name: DIN Hydraulic Non Return Valve, Male Stud BSP Parallel - Body Only
Brand: World Wide Metric, Inc.
SKU: VAL-e760e8
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-e760e8

Experience precise flow control with our DIN Hydraulic Male Stud Non Return Valve for hydraulic systems, ensuring reliability at 100 bar pressure.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Hydraulic Male Stud Non Return Valve with Elastomer Seal ensures reliable flow control in hydraulic systems. Operating at a nominal pressure of 100 bar, this valve is built with durable carbon steel for light-duty applications. With a tube diameter of 28mm and precise G-Thread size of 1, it meets the stringent standards of DIN valves, making it ideal for hydraulic check valve applications.

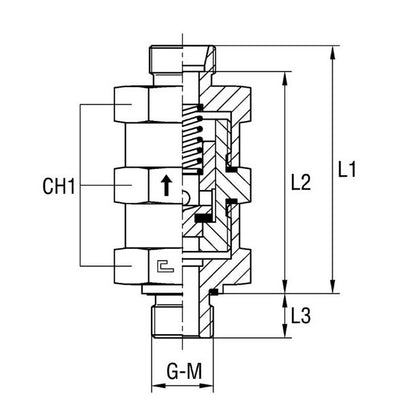

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

18 mm

Specifications G Thread Size

Specifications L1

83 mm

Specifications L2

75.5 mm

Specifications L3

18.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

28 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

DIN Hydraulic Non Return Valve, Male Stud BSP Parallel - Body Only
