DIN Male Stud Non Return Valve - O-ring Body, Pressure Options, Stainless Steel
DIN Male Stud Non Return Valve - O-ring Body, Pressure Options, Stainless Steel
SKU:VAL-b92019
Enhance hydraulic performance with our DIN Male Stud Non Return Valve - Pressure options, Stainless Steel construction. Reliable and durable.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DIN Male Stud Non Return Valve - O-ring Body, Pressure Options, Stainless Steel
$59.99
Quantity: 1
Claim Your Seller Account
DIN Male Stud Non Return Valve - O-ring Body, Pressure Options, Stainless Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Male Stud Non Return Valve with O-ring Thread UNF/UN-2A ensures reliable hydraulic performance with options for Extra Light, Heavy, or Light Duty pressure ratings. Crafted from durable Stainless Steel, this valve is designed for optimal functionality in hydraulic systems. With precise dimensions and a 11mm Diameter Pass., it meets stringent industry standards.

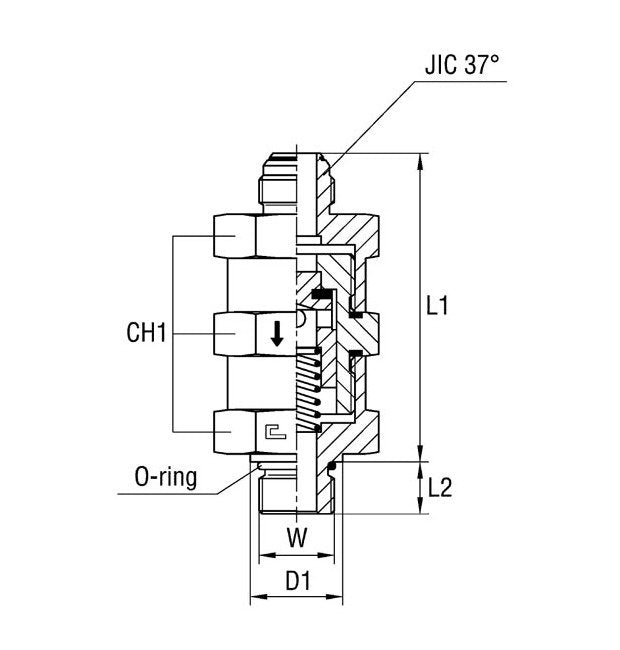

Product Specifications
Specifications Ch1
41 mm
Specifications D1
26.8 mm
Specifications Diameter Pass
11 mm
Specifications Jic 37 Thread
7/8-14
Specifications L1
76.3 mm
Specifications L2
12.7 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
7/8-14
Specifications W Tube Diameter
5/8 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
