DIN Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread

Name: DIN Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: VAL-e5af59
Price: 39.99 USD
Availability: OutOfStock

SKU:VAL-e5af59

DIN Male Stud Non Return Valve for hydraulic systems. Carbon steel construction, metric parallel thread, and elastomer seal for efficient performance.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Male Stud Non Return Valve features a durable carbon steel construction, suitable for extra light duty to heavy-duty applications. With a nominal operating pressure of 350 bar and precise tube diameters, it ensures reliable performance in hydraulic systems. The elastomer seal and metric parallel thread enhance sealing efficiency and prevent backflow. Compliant with DIN standards, this valve offers exceptional functionality and longevity for a wide range of industrial applications.

Product Specifications

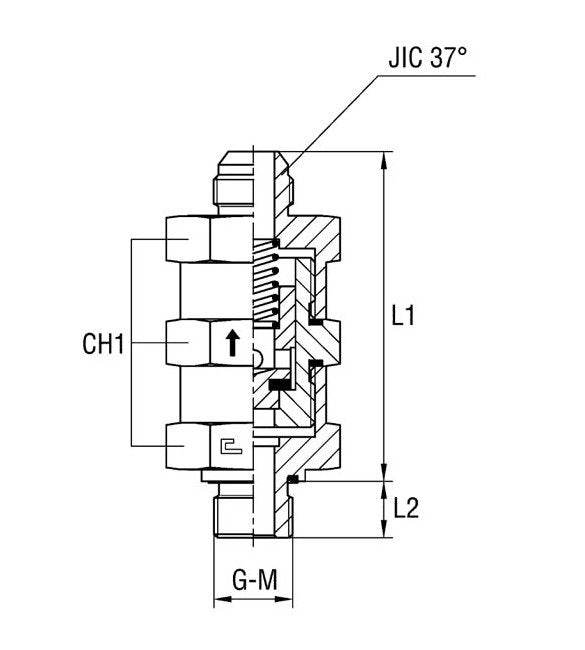

Specifications Ch1

19.0 mm

Specifications Diameter Pass

2.8 mm

Specifications Jic 37 Thread

7/16-20

Specifications L1

64.0 mm

Specifications L2

8.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

10x1

Specifications M Tube Diameter

6 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1/4 in

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel

DIN Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
