DIN Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
DIN Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
SKU:VAL-f085b1
High-performance DIN male stud non-return valve for hydraulic systems. Stainless steel construction with 350 bar operating pressure.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
DIN Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$39.99
Quantity: 1
Claim Your Seller Account
DIN Male Stud Non Return Valve with Elastomer Seal - Metric Parallel Thread
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel offers exceptional performance for hydraulic systems. This valve is designed for extra light duty to heavy-duty operations with a nominal operating pressure of 350 bar. Featuring stainless steel construction and precise dimensions, it ensures reliable and long-lasting functionality. With tube diameters of 18mm and 20mm, and metric parallel thread sizes, this valve is versatile and meets strict DIN standards.
Product Specifications

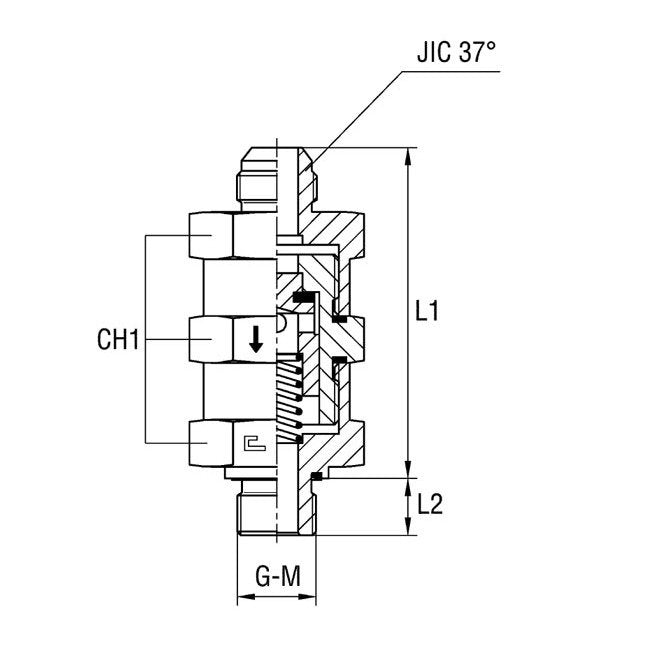

Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
90.9 mm
Specifications L2
16.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
27x2
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
