DIN PN 10 Cast Steel Storm Vertical Valve

DIN PN 10 Cast Steel Storm Vertical Valve

SKU:VAL-ea2bba

High-performance DIN PN 10 Cast Steel Storm Vertical Valve for industrial applications, meets DIN 17053 standards.

Regular price $349.99
Regular price Sale price $349.99
Sale

Initiate Order

DIN PN 10 Cast Steel Storm Vertical Valve

DIN PN 10 Cast Steel Storm Vertical Valve

$349.99

Quantity: 1

Claim Your Seller Account

DIN PN 10 Cast Steel Storm Vertical Valve

DIN PN 10 Cast Steel Storm Vertical Valve

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DIN PN 10 Cast Steel Storm Vertical Pattern Valve is a durable and reliable valve designed for industrial applications. Constructed with high-quality materials including Cast Steel body, Bronze disc, and Brass stem, this valve ensures superior performance and longevity. The valve meets stringent DIN 17053 standards and features a Brass seat for enhanced sealing. Equipped with a Handwheel actuator and flanged connections per DIN2501-PN10, this valve is easy to install and operate, making it an ideal choice for institutional and government procurement needs.

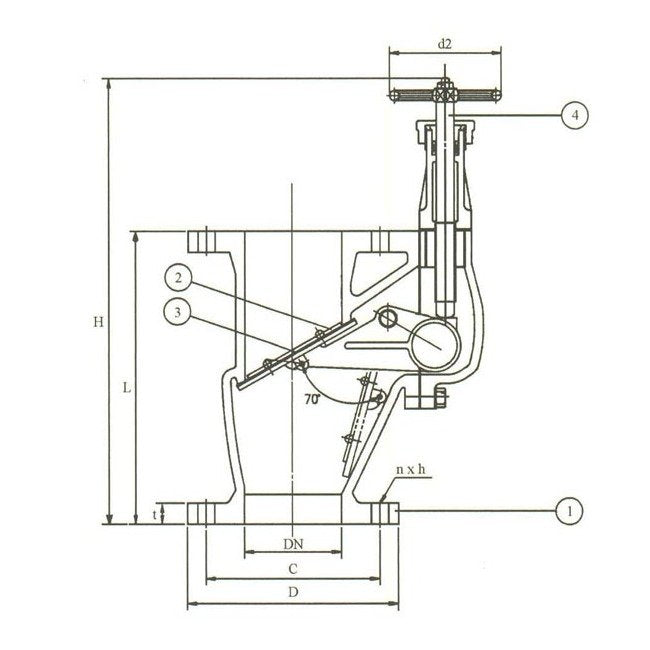

Product Specifications

Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
100 mm
Specifications Disc Material
Bronze
Specifications H
490 mm
Specifications Hydraulic Inspection Body
5.1
Specifications Hydraulic Inspection Seat
2.0
Specifications Impaissa Code
754274 | 754280
Specifications L
300 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
100
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
48.7 kg
