DIN PN 10 Cast Steel Vertical Pattern Storm Valve

Name: DIN PN 10 Cast Steel Vertical Pattern Storm Valve
Brand: World Wide Metric, Inc.
SKU: VAL-e36bbd
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-e36bbd

Durable and efficient DIN PN 10 Cast Steel Vertical Pattern Storm Valve for industrial applications.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 10 Cast Steel Vertical Pattern Storm Valve is a robust and reliable valve designed for industrial use, featuring a cast steel body, bronze disc, stainless steel seat, and stem options in brass or stainless steel 316. With precise hydraulic inspections conforming to DIN standards, this valve ensures optimal performance and durability. The valve's handwheel actuator allows for easy operation, while the flanged connection provides secure installation according to DIN2501-PN10 requirements.

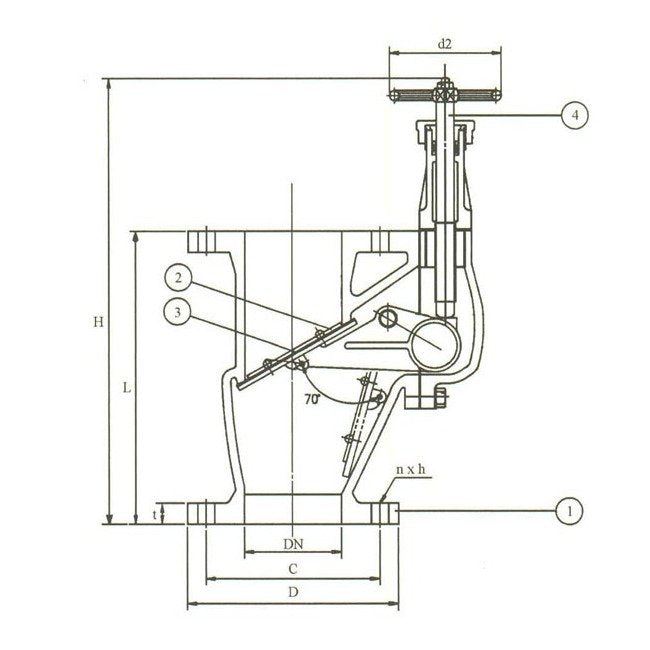

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

490 mm

Specifications Hydraulic Inspection Body

5.1

Specifications Hydraulic Inspection Seat

2.0

Specifications L

300 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

100

Specifications Stem Material

Stainless Steel

Specifications T

20 mm

Specifications Weight

48.7 kg

DIN PN 10 Cast Steel Vertical Pattern Storm Valve
