DIN PN 10 Cast Steel Vertical Pattern Storm Valve

Name: DIN PN 10 Cast Steel Vertical Pattern Storm Valve
Brand: World Wide Metric, Inc.
SKU: VAL-3bc704
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-3bc704

High-performance DIN PN 10 Cast Steel Valve for reliability and durability. Compliant with Federal procurement standards.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 10 Cast Steel Storm Vertical Pattern Valve is a robust solution designed for durability and high performance. Constructed with a Cast Steel body, Bronze disc, and Brass stem, this valve ensures reliable operation in demanding environments. With precise hydraulic inspections conforming to DIN standards and brass seat material, it delivers optimal flow control and longevity. Equipped with handwheel actuators, it offers ease of operation. Compliant with Federal procurement standards and industry-specific certifications, this valve is a trusted choice for institutional applications.

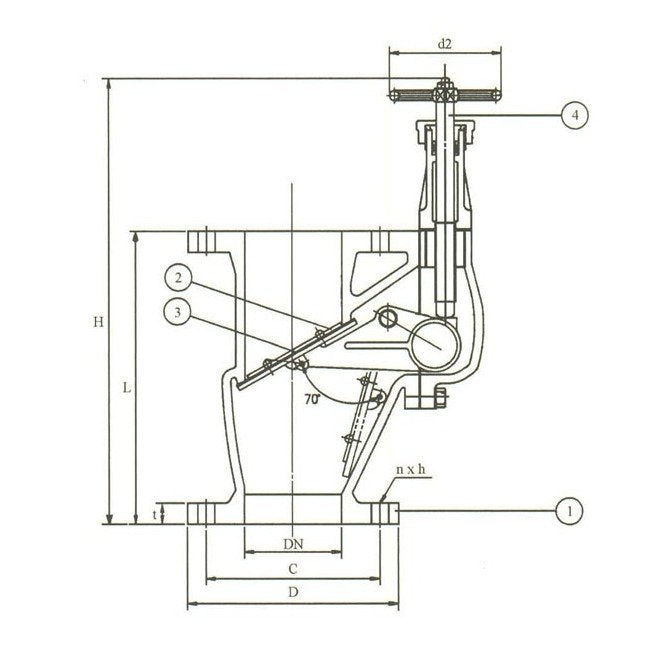

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

356 mm

Specifications Hydraulic Inspection Body

5.1

Specifications Hydraulic Inspection Seat

2.0

Specifications Impaissa Code

754271 | 754277

Specifications L

200 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

050

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

19.9 kg

DIN PN 10 Cast Steel Vertical Pattern Storm Valve
