DIN PN 100 Cast Steel Globe SDNR Valve
DIN PN 100 Cast Steel Globe SDNR Valve
SKU:VAL-19a617
High-quality DIN PN 100 Cast Steel Globe SDNR Valve designed for precision flow control in industrial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN 100 Cast Steel Globe SDNR Valve
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN 100 Cast Steel Globe SDNR Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 100 Cast Steel Globe SDNR Valve is a high-quality industrial valve crafted with precision and durability in mind. Featuring a cast steel body, stellited seat and disc, and stainless steel stem, it ensures reliable performance even in challenging environments. With a robust construction and adherence to ISO5752 standards for face to face dimensions and DIN2501-PN100 for flanges, this valve is ideal for critical applications requiring precise flow control.

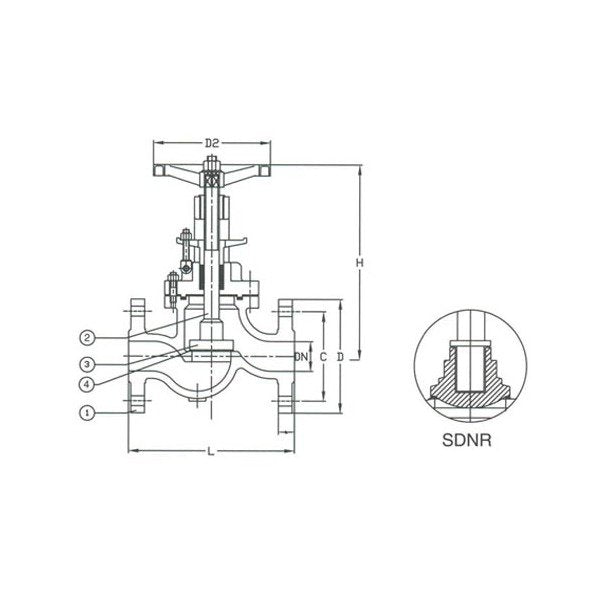

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
170 mm
Specifications D2
200 mm
Specifications Disc Material
Stellited
Specifications H
350 mm
Specifications Hydraulic Inspection Body
150
Specifications Hydraulic Inspection Seat
100
Specifications L
260 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stellited
Specifications Size
040
Specifications Stem Material
Stainless Steel
Specifications T
28 mm
Specifications Weight
23.0 kg
