DIN PN 16 Bronze Angle Valve with Bolted Bonnet

Name: DIN PN 16 Bronze Angle Valve with Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-6c09ab
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-6c09ab

Reliable DIN PN 16 Bronze Angle Valve with Bolted Bonnet for industrial use. Durable bronze construction with easy installation.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Bronze Angle Valve with Bolted Bonnet is a high-quality valve designed for reliable performance in industrial applications. This valve features a bronze body, seat, and disc, ensuring durability and corrosion resistance. The stem is made of brass for strength and longevity. With Flanges according to DIN2501-PN16 standards and a handwheel actuator, this valve is easy to install and operate. Its precise dimensions and materials meet strict industry standards, making it a dependable choice for your hydraulic system.

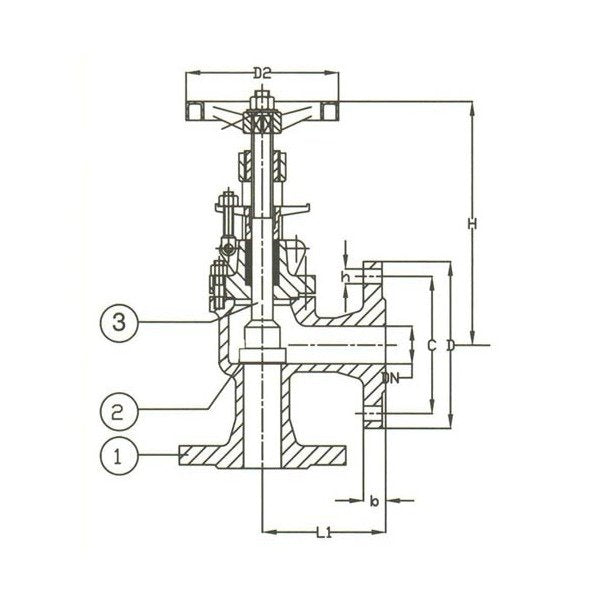

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

250 mm

Specifications D2

225 mm

Specifications Disc Material

Bronze

Specifications H

415 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

200 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

125

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

51 kg
