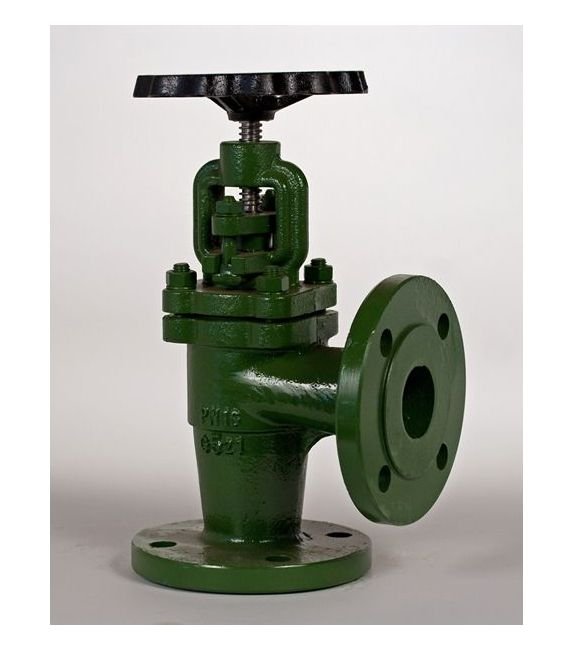

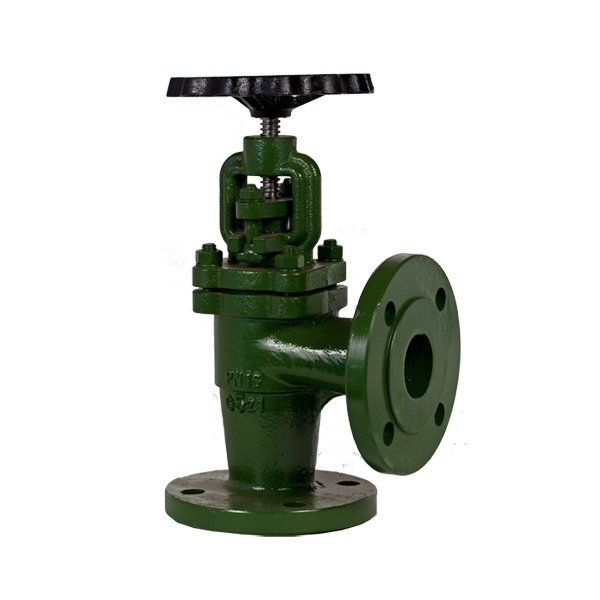

DIN PN 16 Cast Iron Angle Regular Valve

DIN PN 16 Cast Iron Angle Regular Valve

SKU:VAL-e24a9e

High-quality DIN PN 16 Cast Iron Angle Regular Valve for reliable performance in government and institutional settings.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

DIN PN 16 Cast Iron Angle Regular Valve

DIN PN 16 Cast Iron Angle Regular Valve

$129.99

Quantity: 1

Claim Your Seller Account

DIN PN 16 Cast Iron Angle Regular Valve

DIN PN 16 Cast Iron Angle Regular Valve

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The DIN PN 16 Cast Iron Angle Regular Valve is designed for precision and durability. Constructed with a cast iron body, stainless steel stem, disc, and seat, it ensures reliable performance in demanding environments. The valve's compliance with ISO5752 Series 8 and DIN2501-PN16 standards makes it ideal for government and institutional applications, providing peace of mind and efficient operation.

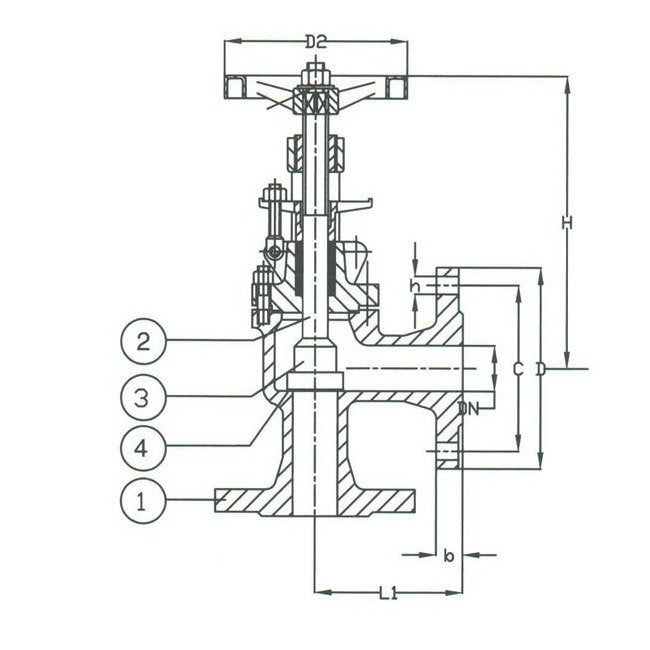

Product Specifications

Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
160 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
100 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
5.5 kg
