DIN PN 16 Cast Iron Angle SDNR Valve

Name: DIN PN 16 Cast Iron Angle SDNR Valve
Brand: World Wide Metric, Inc.
SKU: VAL-809168
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-809168

High-quality DIN PN 16 Cast Iron Angle SDNR Valve for hydraulic systems, featuring cast iron body and stainless steel components. ISO5752 Series 8 compliant with DIN2501-PN16 flanges.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

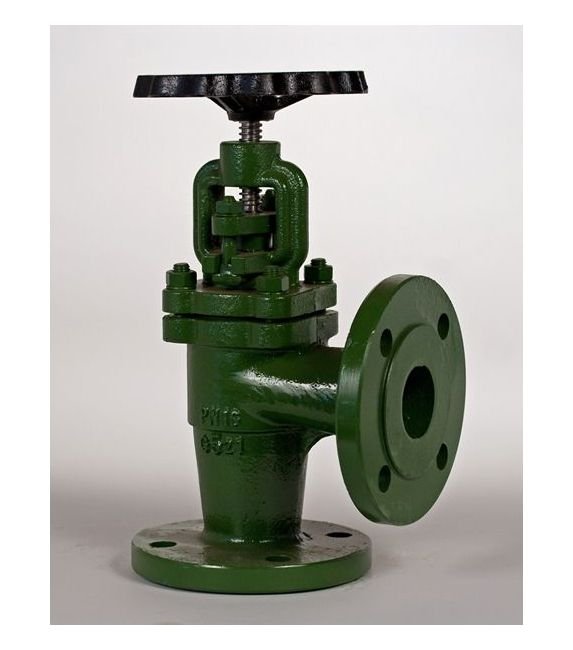

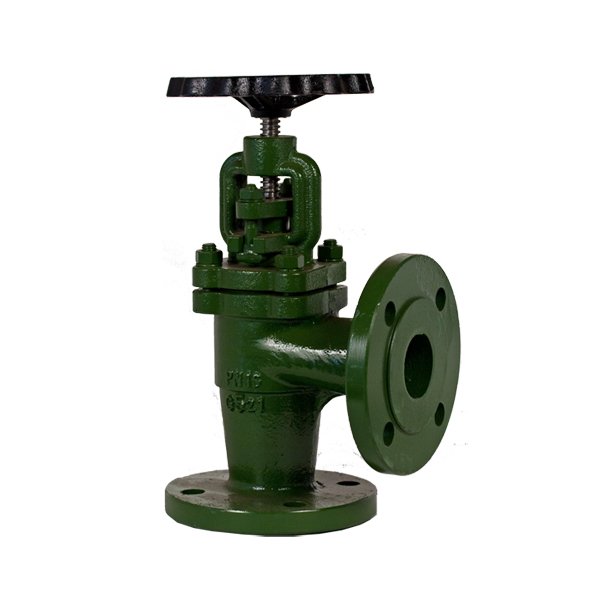

The DIN PN 16 Cast Iron Angle SDNR Valve is a reliable industrial valve designed for optimal performance in hydraulic systems. Constructed with a cast iron body, stainless steel stem, disc, and seat, this valve ensures durability and seamless operation. Compliant with ISO5752 Series 8 standards and featuring DIN2501-PN16 flanges, it meets rigorous industry requirements for quality and safety. The Handwheel actuator provides easy manual operation, making it suitable for a wide range of applications.

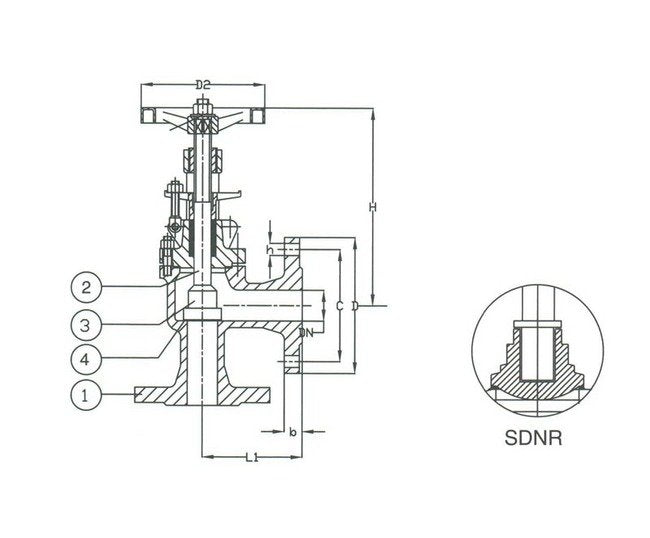

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

270 mm

Specifications Connection

Flanged Drilled

Specifications D

315 mm

Specifications D2

300 mm

Specifications Disc Material

Stainless Steel

Specifications H

470 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

250 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

175

Specifications Stem Material

Stainless Steel

Specifications T

24 mm

Specifications Weight

92 kg
