DIN PN 16 Cast Iron Angle SDNR Valve - Size 125mm

Name: DIN PN 16 Cast Iron Angle SDNR Valve - Size 125mm
Brand: World Wide Metric, Inc.
SKU: VAL-2950b1
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-2950b1

High-quality DIN PN 16 Cast Iron Angle SDNR Valve for precise fluid control. Cast Iron body, Stainless Steel components. Manual handwheel actuation.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

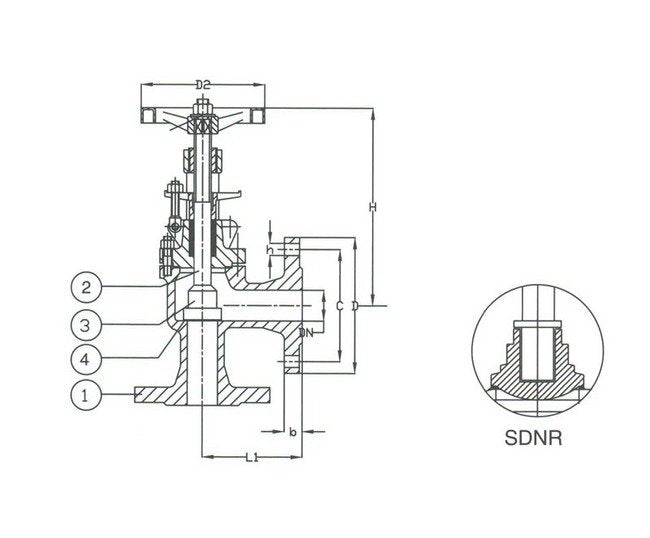

The DIN PN 16 Cast Iron Angle SDNR Valve is a robust solution for fluid control systems, featuring a Cast Iron body, Stainless Steel stem, disc, and seat materials. With precise manufacturing according to ISO5752 standards and DIN2501-PN16 flanges, this valve ensures reliable performance and longevity. The handwheel actuator allows for manual operation, making it versatile for various applications in industrial settings.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

250 mm

Specifications D2

225 mm

Specifications Disc Material

Stainless Steel

Specifications H

355 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

200 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

125

Specifications Stem Material

Stainless Steel

Specifications T

22 mm

Specifications Weight

46 kg

DIN PN 16 Cast Iron Angle SDNR Valve - Size 125mm
