DIN PN 16 Cast Iron Angle SDNR Valve with Stainless Steel Components

Name: DIN PN 16 Cast Iron Angle SDNR Valve with Stainless Steel Components
Brand: World Wide Metric, Inc.
SKU: VAL-e6f877
Price: 159.99 USD
Availability: OutOfStock

SKU:VAL-e6f877

Durable DIN PN16 Cast Iron Angle SDNR Valve with Stainless Steel Components for precise flow control.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Angle SDNR Valve is a reliable solution for regulating flow in industrial settings. Constructed with a GG252 cast iron body and stainless steel components (disc, seat, and stem), this valve ensures durability and resistance to corrosion. With flanges meeting DIN2501-PN16 standards, it offers secure connections and efficient performance. The handwheel actuators allow easy operation, making it ideal for various applications requiring precision and reliability.

Product Specifications

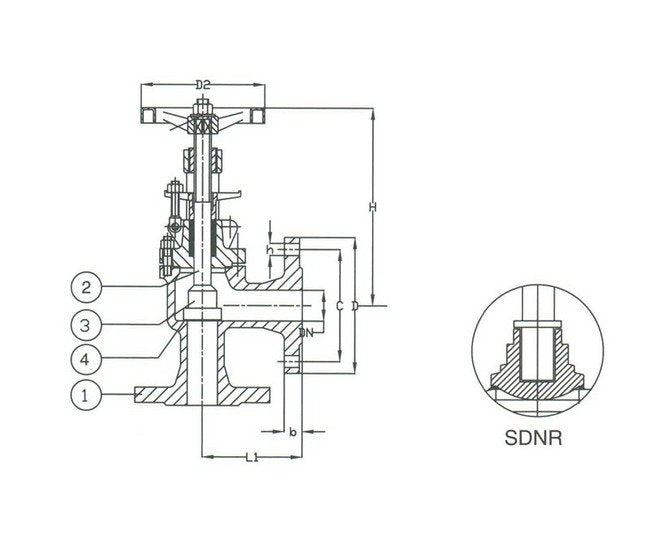

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

85 mm

Specifications Connection

Flanged Drilled

Specifications D

115 mm

Specifications D2

125 mm

Specifications Disc Material

Stainless Steel

Specifications H

160 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

100 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

025

Specifications Stem Material

Stainless Steel

Specifications T

16 mm

Specifications Weight

5.5 kg
