DIN PN 16 Cast Iron Angle Valve

Name: DIN PN 16 Cast Iron Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-393eaf
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-393eaf

Discover reliability and durability with our DIN PN 16 Cast Iron Angle Valve. Crafted for industrial precision and compliance with ISO5752 Series 8 and DIN2501-PN16 standards.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Angle Regular Valve is a robust solution crafted with a Cast Iron body, and Stainless Steel stem, disc, and seat to ensure durability and high performance. Compliant with ISO5752 Series 8 standards and DIN2501-PN16 flange requirements, this valve offers reliable operation in demanding environments. The handwheel actuators provide easy manual control, making it ideal for industrial applications that require precision flow control.

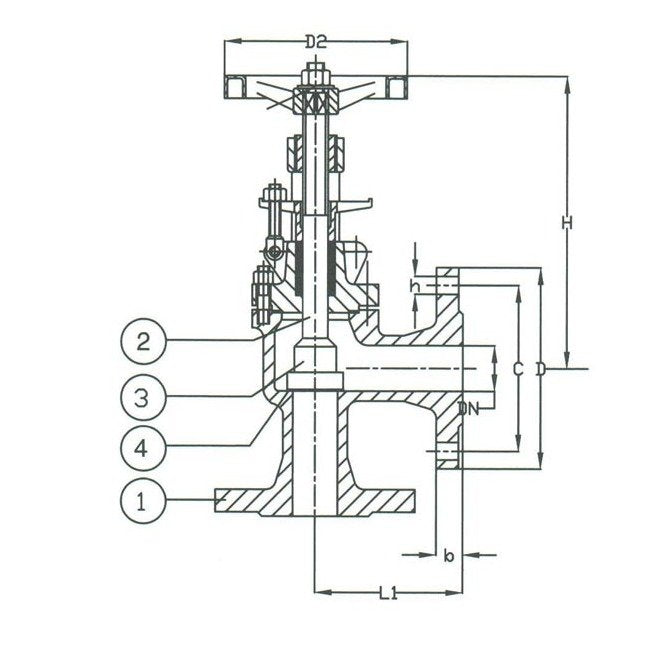

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

410 mm

Specifications Connection

Flanged Drilled

Specifications D

460 mm

Specifications D2

500 mm

Specifications Disc Material

Stainless Steel

Specifications H

630 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

375 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

300

Specifications Stem Material

Stainless Steel

Specifications T

26 mm

Specifications Weight

270 kg
