DIN PN 16 Cast Iron Angle Valve

Name: DIN PN 16 Cast Iron Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-7ee18b
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-7ee18b

Reliable DIN PN 16 Cast Iron Angle Valve for industrial use with sturdy construction and precise control.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Angle Valve is a sturdy and durable valve designed for reliable performance in industrial applications. Crafted with a GG252 cast iron body, stainless steel stem, disc, and seat, this valve ensures long-lasting functionality. With flanges meeting DIN2501-PN16 standards, this valve offers easy installation and secure connections. The handwheel actuator allows for manual operation, providing precise control over fluid flow. Suitable for hydraulic applications, this valve complies with ISO5752 Series 8 standards, making it a dependable choice for institutional and government procurement needs.

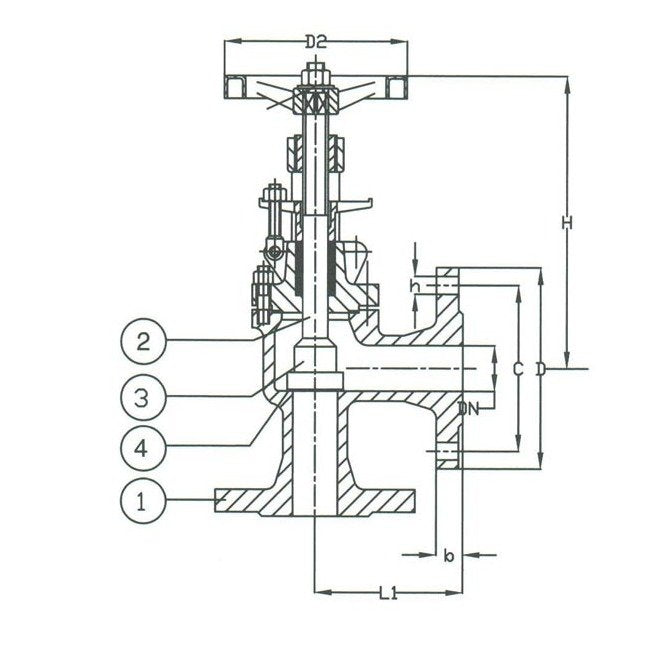

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

110 mm

Specifications Connection

Flanged Drilled

Specifications D

150 mm

Specifications D2

150 mm

Specifications Disc Material

Stainless Steel

Specifications H

200 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

115 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

040

Specifications Stem Material

Stainless Steel

Specifications T

16 mm

Specifications Weight

9.10 kg
