DIN PN 16 Cast Iron Angle Valve with Stainless Steel Components

Name: DIN PN 16 Cast Iron Angle Valve with Stainless Steel Components
Brand: World Wide Metric, Inc.
SKU: VAL-97907d
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-97907d

Durable DIN PN 16 Cast Iron Angle Valve with Stainless Steel components for reliable fluid control.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Angle Regular Valve is a robust and reliable solution for fluid control applications. Constructed with a Cast Iron body, Stainless Steel stem, disc, and seat, this valve ensures durability and corrosion resistance. With a Size of 100, Hydraulic Inspection ratings of 25 for the body and 16 for the seat, and compliance with ISO5752 and DIN2501-PN16 standards, this valve guarantees optimal performance and safety in industrial settings.

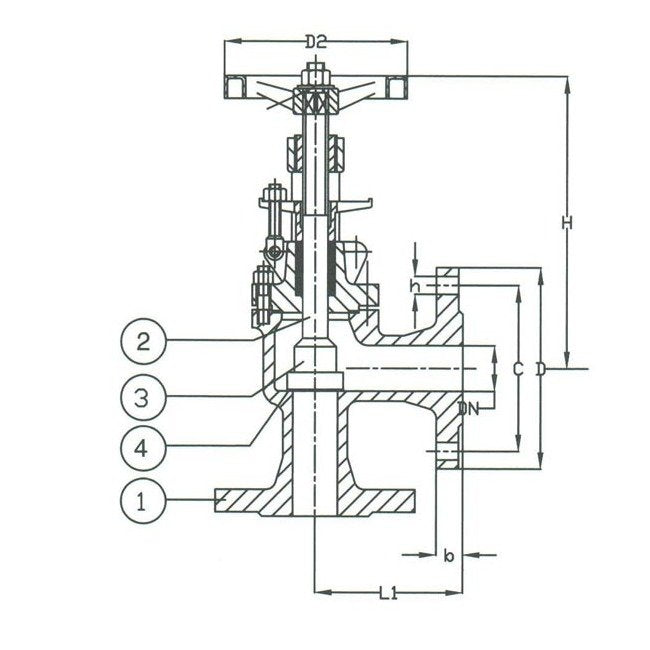

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Stainless Steel

Specifications H

325 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

175 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

100

Specifications Stem Material

Stainless Steel

Specifications T

20 mm

Specifications Weight

32.0 kg
