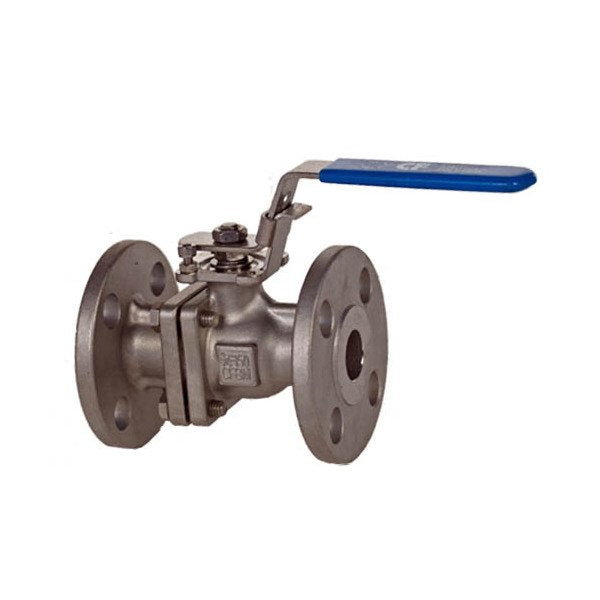

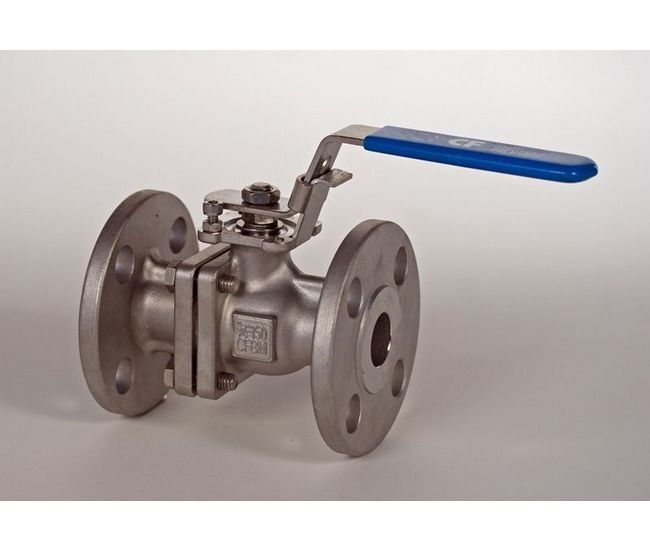

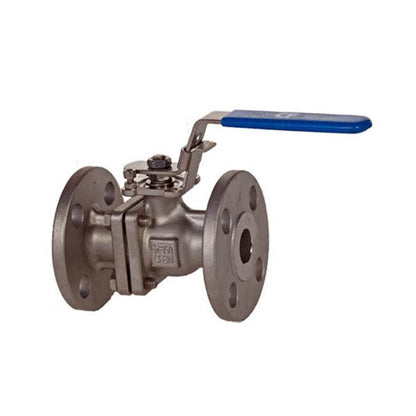

DIN PN 16 Cast Iron Ball Valve

Name: DIN PN 16 Cast Iron Ball Valve
Brand: World Wide Metric, Inc.
SKU: VAL-0b010c
Price: 79.99 USD
Availability: OutOfStock

SKU:VAL-0b010c

DIN PN 16 Cast Iron Ball Valve - Durable and precise valve for industrial hydraulic systems.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Ball Valve is a reliable choice for industrial applications. Constructed with a GG252 Cast Iron body, Brass ball, and Teflon/PTFE or Stainless Steel seat, it ensures durability and smooth operation. Meeting DIN 3202-F4/5 face to face dimensions and DIN2501-PN16 flange standards, this valve is suitable for a range of hydraulic systems.

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Iron

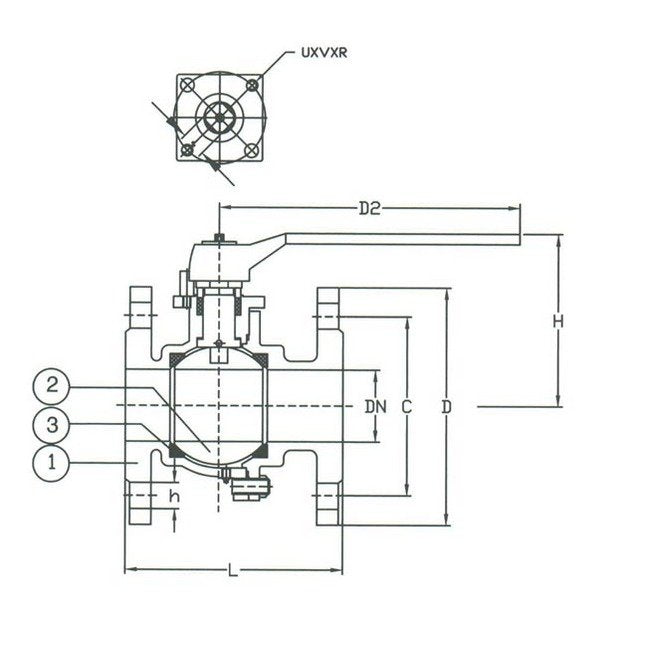

Specifications C

75 mm

Specifications D

105 mm

Specifications D2

130 mm

Specifications H

70 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

756686

Specifications L

120 mm

Specifications Number Of Holes

Specifications Seat Material

Synthetic Material

Specifications Size

020

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

2.5 kg

DIN PN 16 Cast Iron Ball Valve
