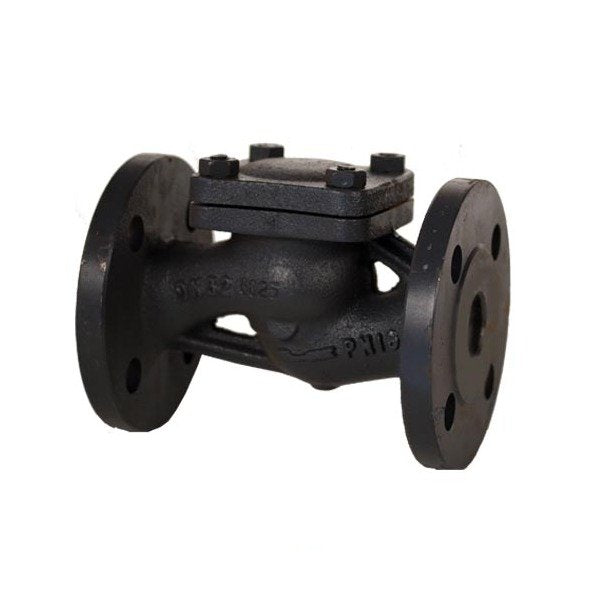

DIN PN 16 Cast Iron Globe Lift Check Valve

Name: DIN PN 16 Cast Iron Globe Lift Check Valve
Brand: World Wide Metric, Inc.
SKU: VAL-e33ad3
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-e33ad3

Durable cast iron globe lift check valve with stainless steel components. Compliant with DIN standards for reliable performance.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

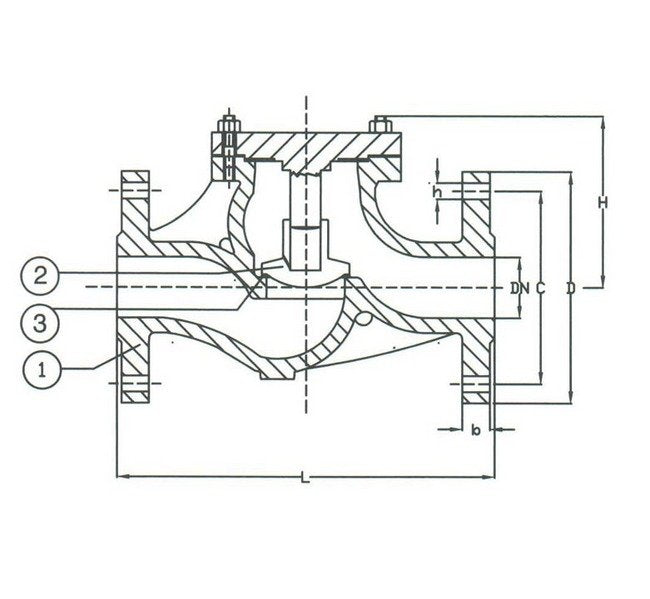

The DIN PN 16 Cast Iron Globe Lift Check Valve is designed for reliable performance in industrial settings. Crafted with a cast iron body and stainless steel disc and seat, this valve ensures durability and corrosion resistance. Compliant with DIN standards, it features a precise face to face and face to center dimensions according to DIN 3202, along with flanges meeting DIN2501-PN16 requirements. Suitable for hydraulic systems, it offers a secure seal and smooth operation, making it a dependable choice for fluid control applications.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications Disc Material

Stainless Steel

Specifications H

80 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753604 | 755844 | 755874

Specifications L

180 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

032

Specifications Stem Material

Stainless Steel

Specifications T

16 in

Specifications Weight

5.00 kg

DIN PN 16 Cast Iron Globe Lift Check Valve
