DIN PN 16 Cast Iron Lift Check Angle Pattern Valve
DIN PN 16 Cast Iron Lift Check Angle Pattern Valve
SKU:VAL-c705a4
Reliable DIN PN 16 Cast Iron Valve for industrial applications, featuring cast iron body, stainless steel disc & seat, and DIN standards compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN PN 16 Cast Iron Lift Check Angle Pattern Valve
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Iron Lift Check Angle Pattern Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 16 Cast Iron Lift Check Angle Pattern Valve is a robust and durable valve suitable for a wide range of industrial applications. Constructed with a cast iron body and stainless steel disc and seat, this valve ensures reliable performance and longevity. Compliant with DIN standards, this valve offers precise hydraulic inspections and seamless connectivity with flanged drilled connections. The handwheel actuator provides easy operation, making it ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

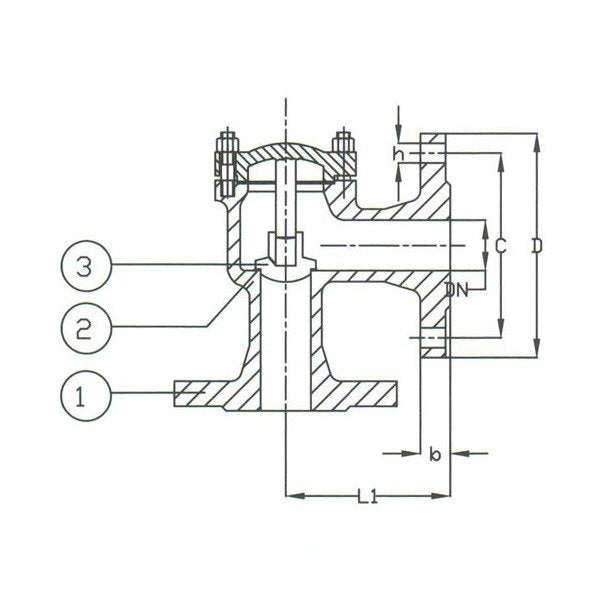

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
110 mm
Specifications Connection
Flanged Drilled
Specifications D
150 mm
Specifications Disc Material
Stainless Steel
Specifications H
18 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755859 | 755889
Specifications L1
115 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
040
Specifications Stem Material
Stainless Steel
Specifications T
16 in
Specifications Weight
7.5 kg
