DIN PN 16 Cast Iron Lift Check Angle Valve - Stainless Steel Disc

Name: DIN PN 16 Cast Iron Lift Check Angle Valve - Stainless Steel Disc
Brand: World Wide Metric, Inc.
SKU: VAL-925942
Price: 189.99 USD
Availability: OutOfStock

SKU:VAL-925942

DIN PN 16 Cast Iron Lift Check Angle Valve for reliable industrial use. Corrosion-resistant with compliant DIN standards.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Lift Check Angle Valve with a Stainless Steel Disc is designed for durability and reliability. The valve features a cast iron body, stainless steel seat, and AISI 410 stainless steel components, ensuring corrosion resistance and longevity. With compliant face to face and flange dimensions according to DIN standards, this valve is ideal for industrial applications requiring precision and performance.

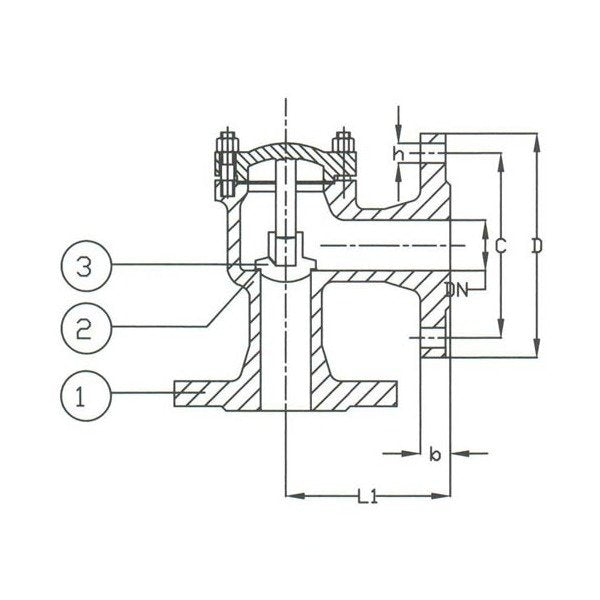

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications Disc Material

Stainless Steel

Specifications H

18 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755858 | 755888

Specifications L1

105.0 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

032

Specifications Stem Material

Stainless Steel

Specifications T

16 in

Specifications Weight

5.00 kg

DIN PN 16 Cast Iron Lift Check Angle Valve - Stainless Steel Disc
