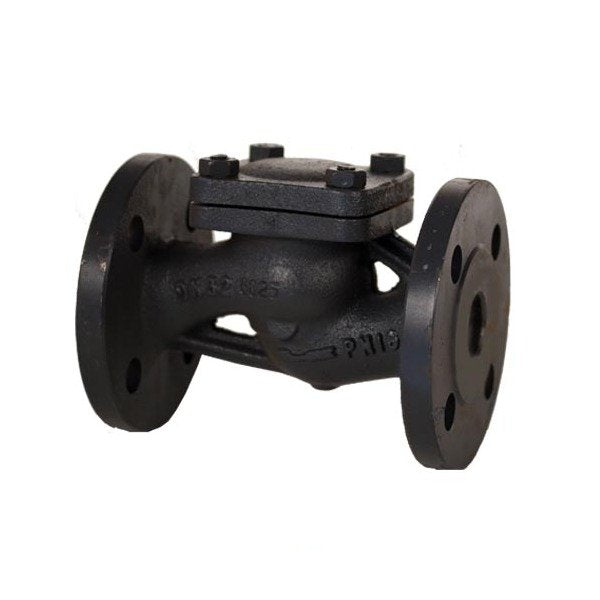

DIN PN 16 Cast Iron Lift Check Globe Valve
DIN PN 16 Cast Iron Lift Check Globe Valve
SKU:VAL-7199e7
Discover the durable DIN PN 16 Cast Iron Lift Check Globe Valve for reliable fluid control. With stainless steel components and DIN standard compliance, it's a robust choice.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DIN PN 16 Cast Iron Lift Check Globe Valve
$499.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Iron Lift Check Globe Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 16 Cast Iron Lift Check Globe Valve is a robust solution for fluid control, featuring a cast iron body with stainless steel disc and seat. Designed to meet DIN standards, this valve ensures reliable performance with a handwheel actuator for easy operation. With specifications like Size: 100, Face to Face according to DIN 3202-F1, and Flanges according to DIN2501-PN16, this valve offers durability and precision in fluid management applications.
Ready to Grow Without Cash Flow Constraints?

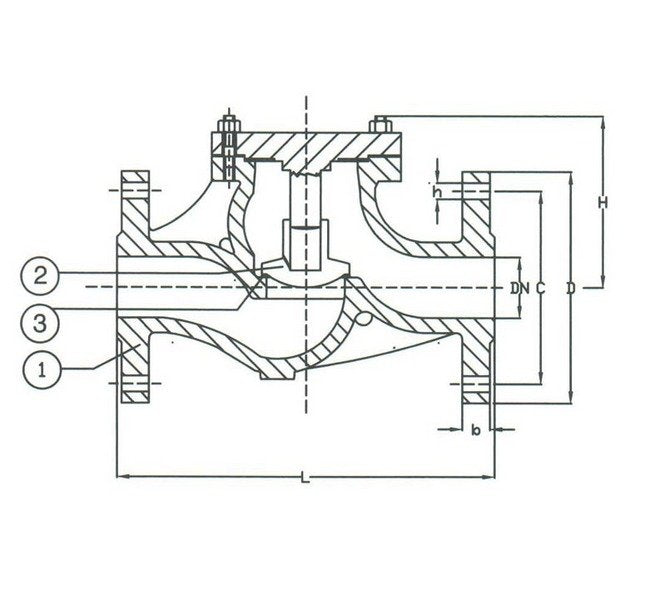

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications Disc Material
Stainless Steel
Specifications H
155 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753609 | 755849 | 755879
Specifications L
350 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
20 in
Specifications Weight
31.0 kg
