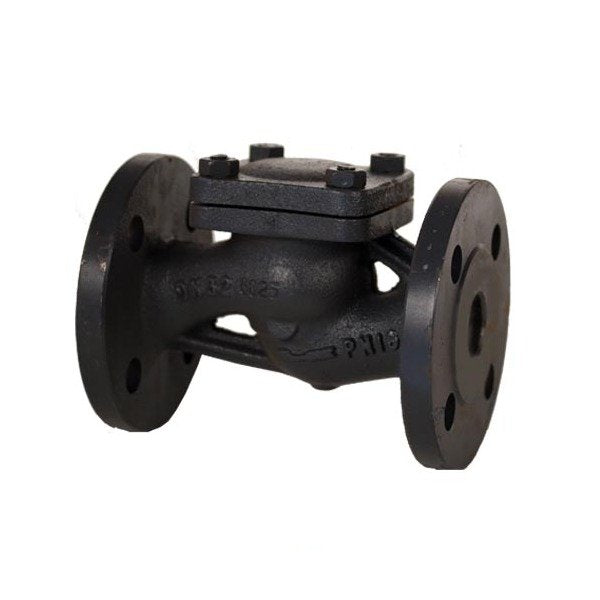

DIN PN 16 Cast Iron Lift Check Globe Valve

Name: DIN PN 16 Cast Iron Lift Check Globe Valve
Brand: World Wide Metric, Inc.
SKU: VAL-40ea9a
Price: 199.99 USD
Availability: OutOfStock

SKU:VAL-40ea9a

Durable DIN PN 16 Cast Iron Valve with Stainless Steel components for reliable performance in diverse applications.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Lift Check Globe Valve excels in durability and performance. Constructed with a Cast Iron body, Stainless Steel seat, and disc, this valve ensures reliable operation in demanding environments. Compliant with DIN standards for face to face and flange dimensions, it offers smooth flow control and efficient hydraulic inspection. The Handwheel actuator provides easy operation, making it ideal for various applications across industries.

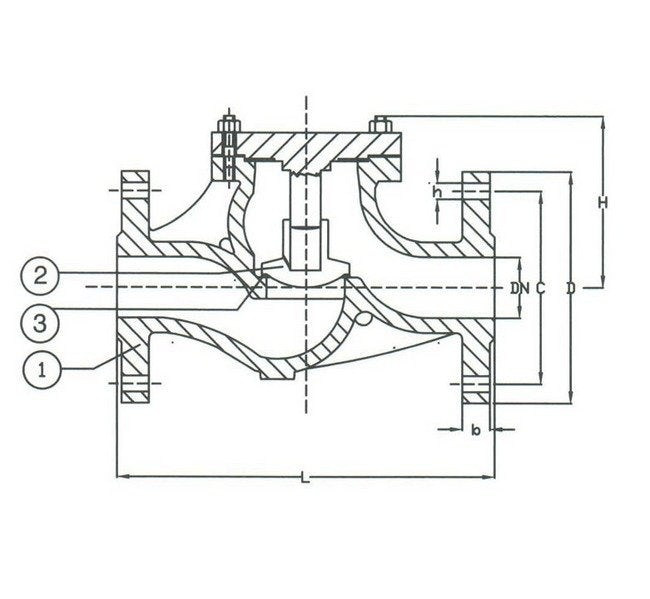

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications Disc Material

Stainless Steel

Specifications H

120 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753607 | 755847 | 755877

Specifications L

290 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

18 in

Specifications Weight

16.0 kg
