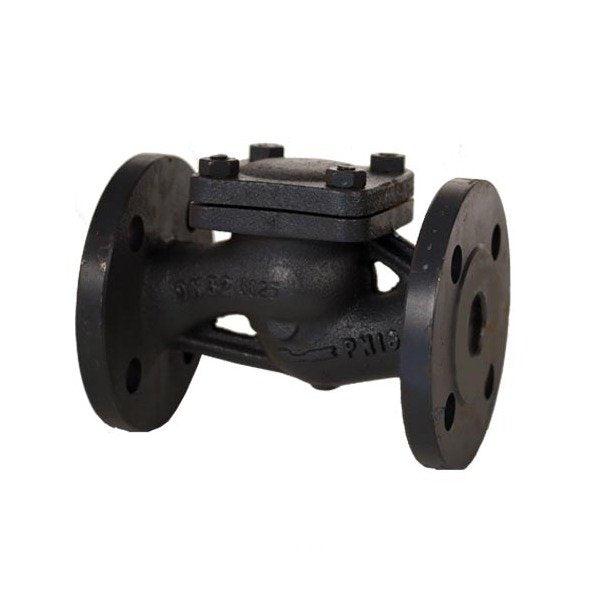

DIN PN 16 Cast Iron Lift Check Globe Valve

Name: DIN PN 16 Cast Iron Lift Check Globe Valve
Brand: World Wide Metric, Inc.
SKU: VAL-a0b3e9
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-a0b3e9

Reliable DIN PN 16 Cast Iron Lift Check Globe Valve for industrial flow control needs.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Iron Lift Check Globe Valve is designed for reliable performance in industrial applications. Constructed with a Cast Iron body, Stainless Steel disc, and seat, this valve ensures durability and corrosion resistance. Compliant with DIN standards, the valve features a Handwheel actuator for easy operation. With precise hydraulic inspections and a sturdy design, this valve offers secure flow control and longevity.

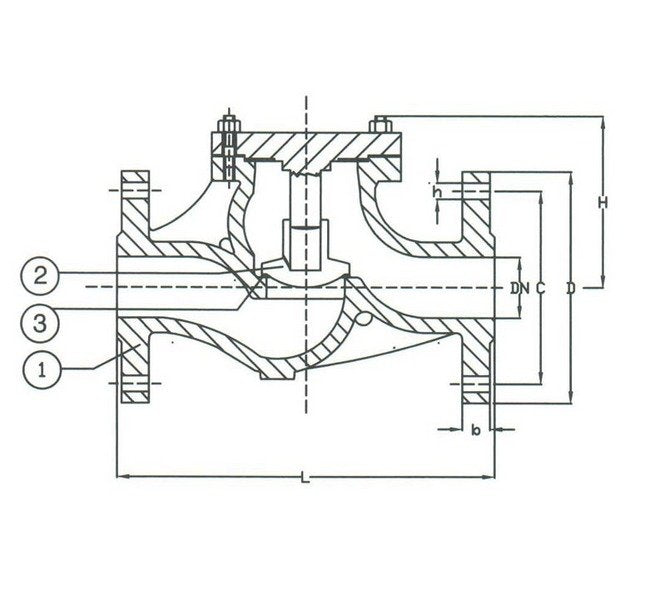

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

295 mm

Specifications Connection

Flanged Drilled

Specifications D

340 mm

Specifications Disc Material

Stainless Steel

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753613 | 755853 | 755883

Specifications L

600 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

200

Specifications Stem Material

Stainless Steel

Specifications T

24 in

Specifications Weight

152 kg

DIN PN 16 Cast Iron Lift Check Globe Valve
