DIN PN 16 Cast Iron Lift Check Globe Valve

Name: DIN PN 16 Cast Iron Lift Check Globe Valve
Brand: World Wide Metric, Inc.
SKU: VAL-ad1953
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-ad1953

High-quality DIN PN 16 Cast Iron Valve for industrial use, providing reliability and durability.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

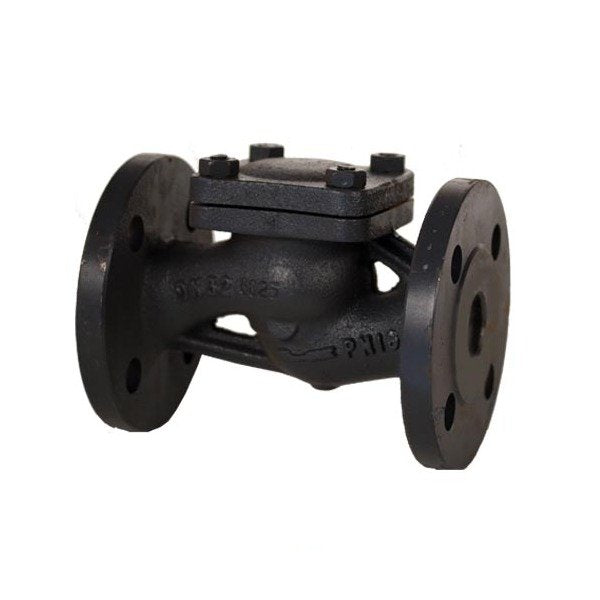

The DIN PN 16 Cast Iron Lift Check Globe Valve is crafted with a durable Cast Iron body and resilient Stainless Steel components, including the disc, seat, and stem. Designed to meet stringent DIN standards, this valve offers reliable performance and longevity. With a size of 125, hydraulic inspection capabilities, and a Handwheel actuator, it is ideal for industrial applications requiring precision and efficiency.

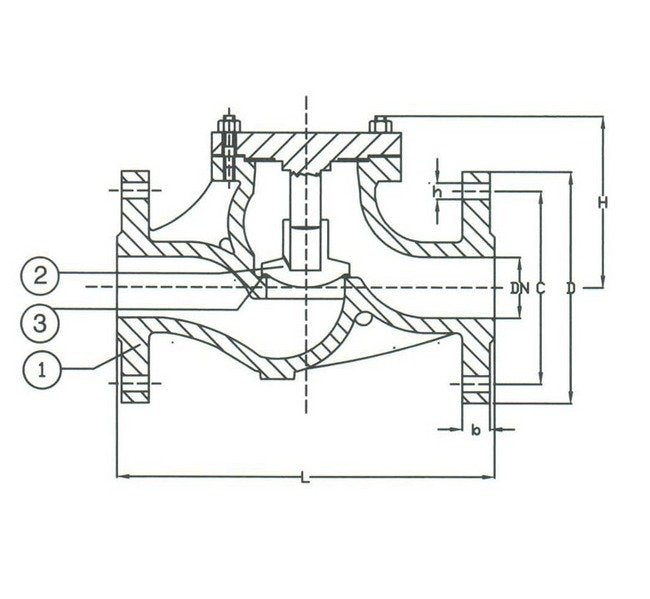

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

250 mm

Specifications Disc Material

Stainless Steel

Specifications H

180 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753610 | 755850 | 755880

Specifications L

400 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

125

Specifications Stem Material

Stainless Steel

Specifications T

22 in

Specifications Weight

48.0 kg
