DIN PN 16 Cast Iron Y-Strainer with Stainless Steel Screen
DIN PN 16 Cast Iron Y-Strainer with Stainless Steel Screen
SKU:VAL-b6a126
DIN PN 16 Cast Iron Y-Strainer with Stainless Steel Screen - Efficient filtration, durable construction, DIN standard compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DIN PN 16 Cast Iron Y-Strainer with Stainless Steel Screen
$349.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Iron Y-Strainer with Stainless Steel Screen
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

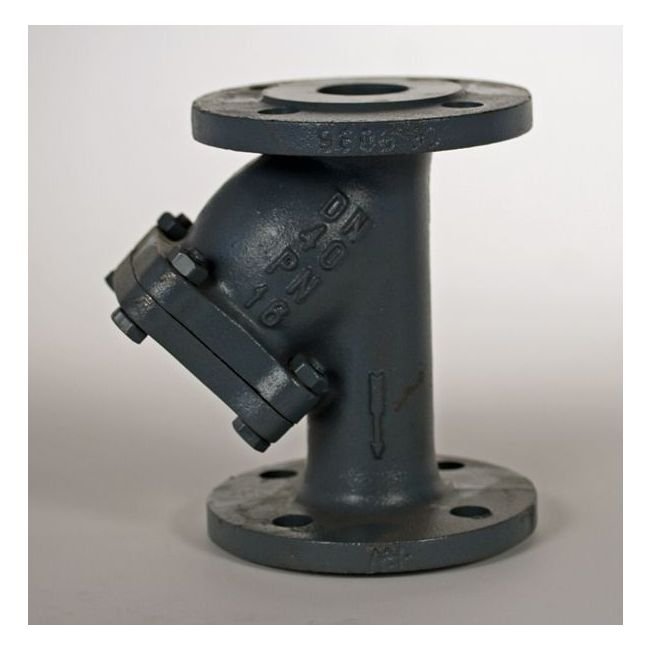

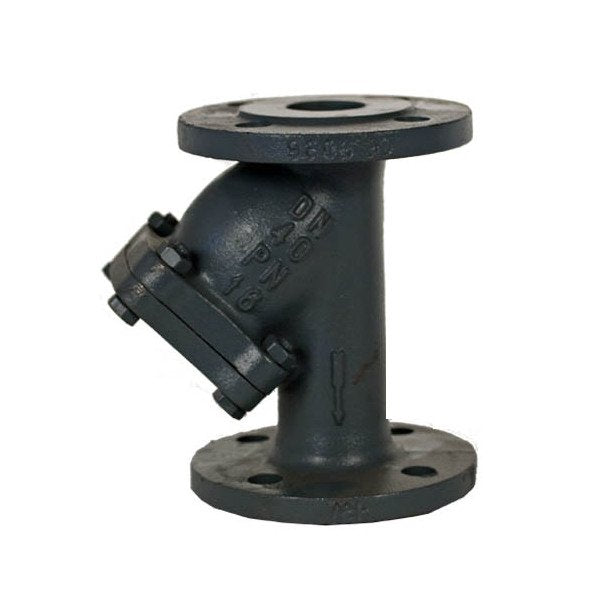

The DIN PN 16 Cast Iron Y-Strainer features a durable GG252 cast iron body housing a corrosion-resistant AISI 304 stainless steel strainer. Compliant with DIN standards, this Y-strainer ensures efficient filtration with a 150 mm size, suitable for hydraulic inspections. With a weight of 67 kg and precise dimensions according to DIN specifications, it offers reliability and longevity for various industrial applications.

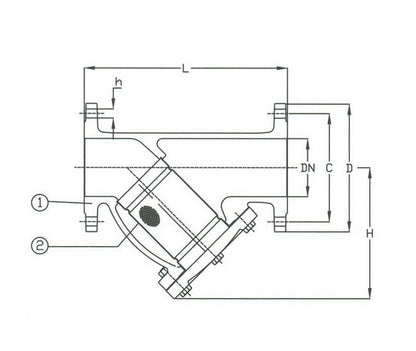

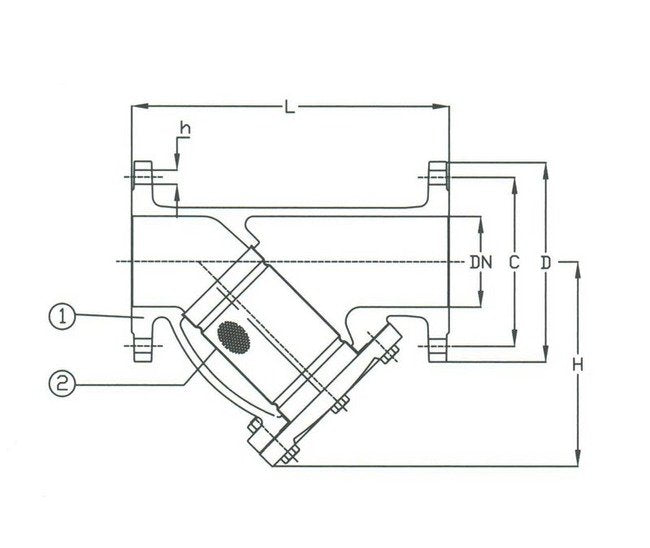

Product Specifications
Specifications Body Material
Cast Iron
Specifications C
240 mm
Specifications D
285 mm
Specifications H
300 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
480 mm
Specifications Number Of Holes
8
Specifications Size
150
Specifications T
22 mm
Specifications Weight
67 kg
