DIN PN 16 Cast Iron Y-Strainers with Stainless Steel Strainer
DIN PN 16 Cast Iron Y-Strainers with Stainless Steel Strainer
SKU:VAL-d77839
High-quality DIN PN 16 Cast Iron Y-Strainers for efficient filtration and durable performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN PN 16 Cast Iron Y-Strainers with Stainless Steel Strainer
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Iron Y-Strainers with Stainless Steel Strainer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

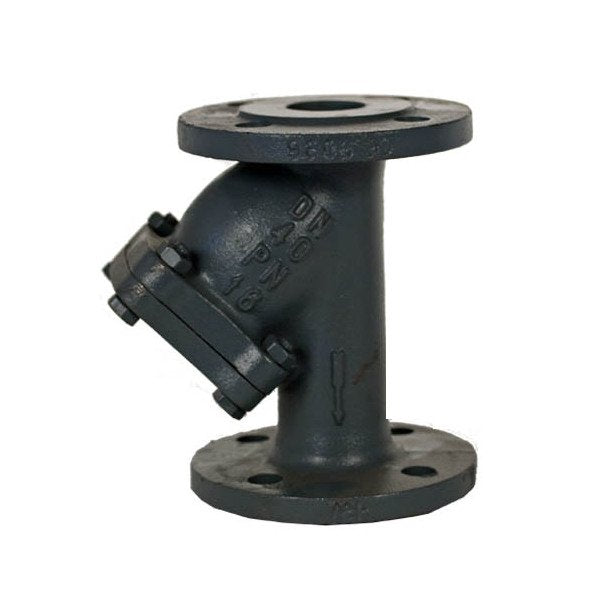

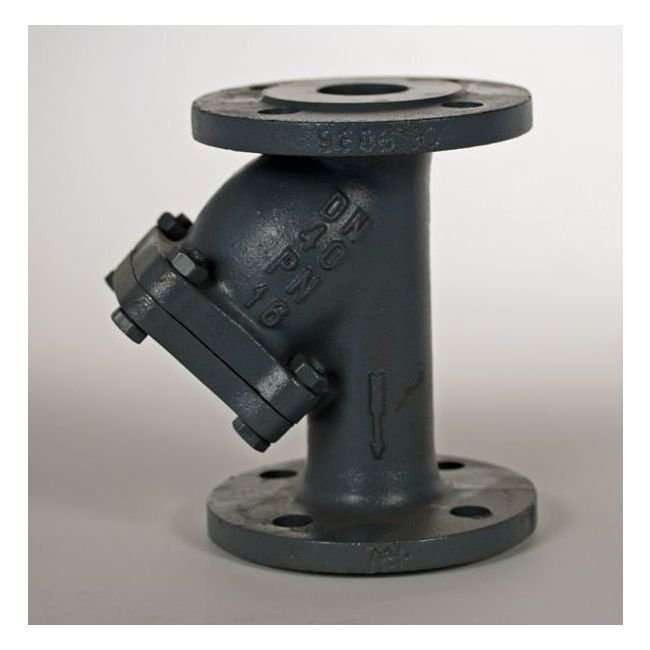

The DIN PN 16 Y-Strainers are expertly crafted with a Cast Iron body (GG252) for robustness and reliability. Featuring a Stainless Steel AISI 304 strainer, these Y-strainers ensure durability and efficient filtration. With Face to Face dimensions meeting DIN 3202-F1 and Flanges conforming to DIN2501-PN16 standards, these strainers provide seamless compatibility and easy installation. Designed for Size 050 with Hydraulic Inspection ratings of 25 for the body and 16 for the seat, these Y-strainers deliver exceptional performance and longevity in industrial settings.

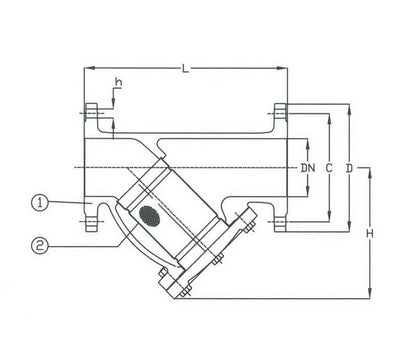

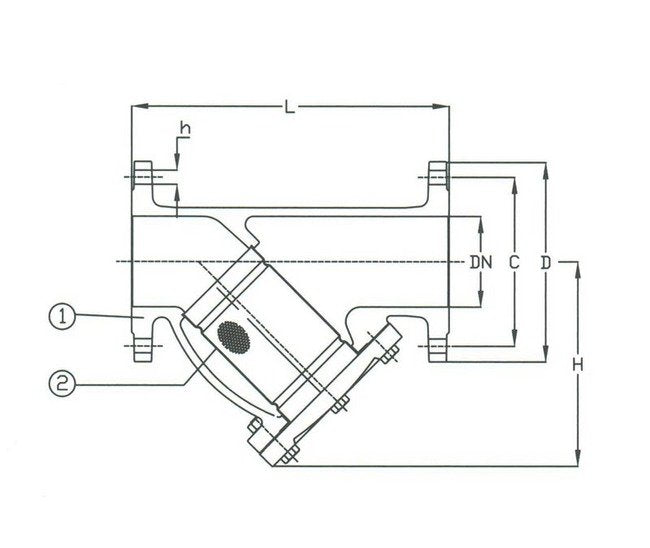

Product Specifications
Specifications Body Material
Cast Iron
Specifications C
125 mm
Specifications D
165 mm
Specifications H
120 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
230 mm
Specifications Number Of Holes
4
Specifications Size
050
Specifications T
18 mm
Specifications Weight
11.5 kg
