DIN PN 16 Cast Steel Angle SDNR Valve
DIN PN 16 Cast Steel Angle SDNR Valve
SKU:VAL-b38698
High-quality DIN PN 16 Cast Steel Angle SDNR Valve for industrial applications. Durable construction for reliable performance.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
DIN PN 16 Cast Steel Angle SDNR Valve
$289.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Steel Angle SDNR Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

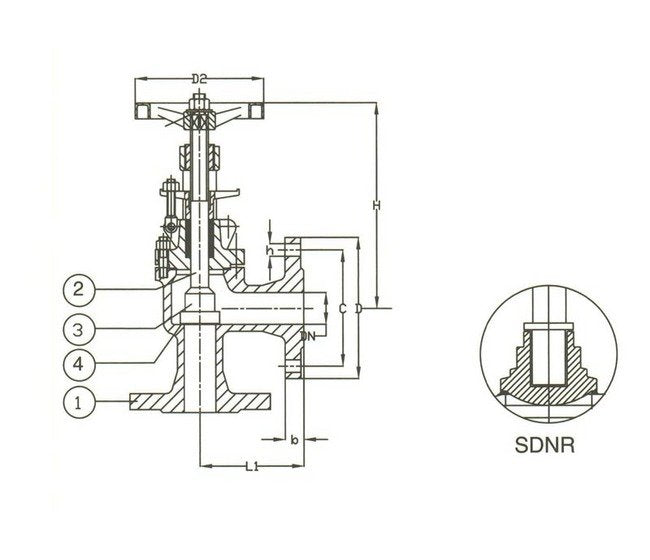

The DIN PN 16 Cast Steel Angle SDNR Valve is a robust and reliable valve designed for industrial applications. Constructed with high-quality materials including Cast Steel body, Brass stem, Stainless Steel disc, and Brass seat, this valve ensures durability and optimal performance. It features a Handwheel actuator for manual operation and Flanged Drilled connections for easy installation. Measuring 125mm in L1, 165mm in D, and 125mm in C, this valve meets ISO5752 Series 8 standards and DIN2501-PN16 flange specifications, making it ideal for institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D2
150 mm
Specifications Disc Material
Stainless Steel
Specifications H
225 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
125 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
050
Specifications Stem Material
Brass
Specifications T
18 mm
Specifications Weight
11.5 kg
