DIN PN 16 Cast Steel Angle Valve

Name: DIN PN 16 Cast Steel Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-701464
Price: 279.99 USD
Availability: OutOfStock

SKU:VAL-701464

Durable DIN PN 16 Cast Steel Angle Valve for reliable industrial fluid control. Compliant with DIN standards.

$279.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

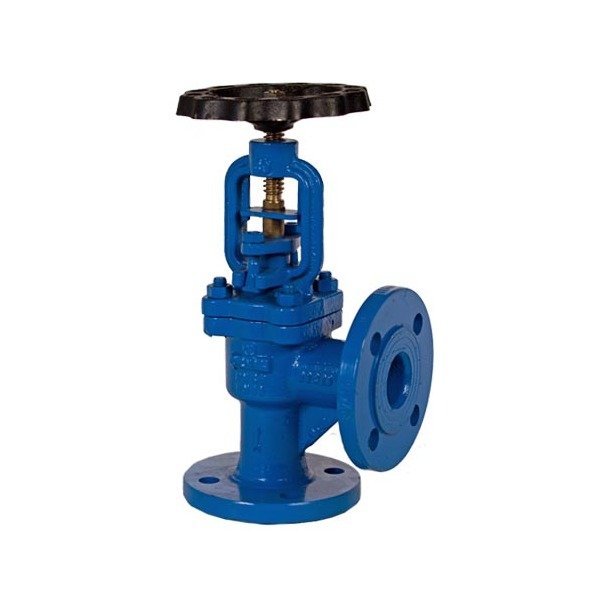

The DIN PN 16 Cast Steel Angle Valve is a robust solution for fluid control applications. Crafted with a Cast Steel body, Brass seat, Stainless Steel disc, and Brass stem, this valve ensures durability and reliable performance. Compliant with DIN 17672 standards, it features precise dimensions, including a Face to Center distance according to ISO5752 Series 8. With a Flanged connection design meeting DIN2501-PN16 requirements, this valve is ideal for industrial settings where quality and efficiency are paramount.

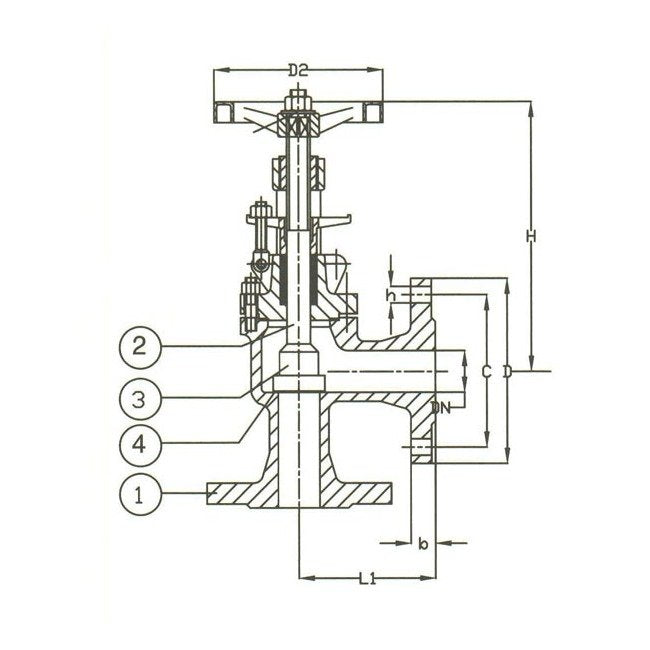

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Stainless Steel

Specifications H

325 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

175 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

100

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

32.0 kg
