DIN PN 16 Cast Steel Swing Check Valve

Name: DIN PN 16 Cast Steel Swing Check Valve
Brand: World Wide Metric, Inc.
SKU: VAL-d10a31
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-d10a31

DIN PN16 Cast Steel Swing Check Valve with durable construction and DIN standards compliance for reliable flow control.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

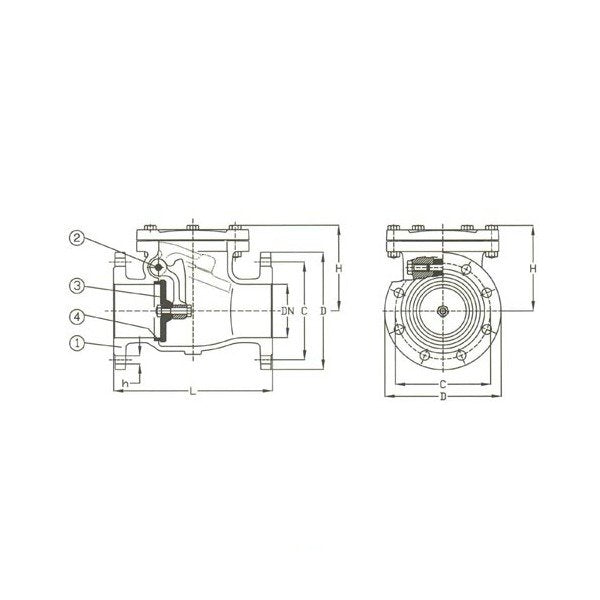

The DIN PN16 Cast Steel Swing Check Valve is constructed with a cast steel body, stainless steel hinge, disc, and seat. Compliant with DIN 3202-F6 standards, this valve ensures reliable flow control. Featuring a flanged connection as per DIN2501-PN16, it offers easy installation and maintenance. With a gravity actuator and robust materials, this valve is ideal for industrial applications requiring durability and performance.

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Cast Steel

Specifications C

110 mm

Specifications Connection

Flanged Drilled

Specifications D

150 mm

Specifications Disc Material

Stainless Steel

Specifications H

105 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753585 | 755951

Specifications L

180 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

040

Specifications Stem Material

Stainless Steel

Specifications T

16 in

Specifications Weight

12.0 kg

DIN PN 16 Cast Steel Swing Check Valve
