DIN PN 16 Cast Steel Swing Check Valve - Size 080

Name: DIN PN 16 Cast Steel Swing Check Valve - Size 080
Brand: World Wide Metric, Inc.
SKU: VAL-498962
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-498962

Durable DIN PN 16 Cast Steel Swing Check Valve for reliable industrial flow control.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Cast Steel Swing Check Valve is designed for reliable flow control in industrial applications. Constructed with a cast steel body, stainless steel disc, and seat, it ensures durability and corrosion resistance. Meeting DIN standards for face-to-face and flange dimensions, this valve guarantees seamless integration in DIN piping systems. With a gravity-operated actuator, it's easy to operate and maintain, making it a cost-effective solution for fluid handling.

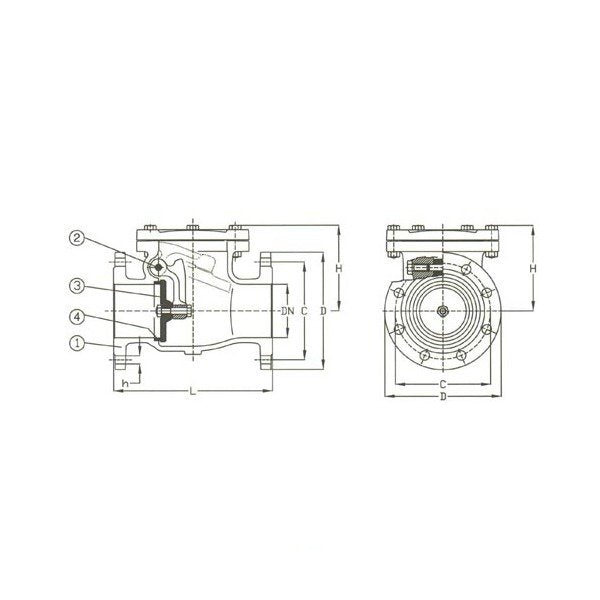

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Cast Steel

Specifications C

160 mm

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications Disc Material

Stainless Steel

Specifications H

145 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753588 | 755954

Specifications L

260 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

080

Specifications Stem Material

Stainless Steel

Specifications T

20 in

Specifications Weight

23.0 kg

DIN PN 16 Cast Steel Swing Check Valve - Size 080
