DIN PN 16 Cast Steel Y-Strainer - GSG25N2
DIN PN 16 Cast Steel Y-Strainer - GSG25N2
SKU:VAL-bc6adf
DIN PN 16 Cast Steel Y-Strainer - Reliable, Efficient, Durable
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN 16 Cast Steel Y-Strainer - GSG25N2
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Steel Y-Strainer - GSG25N2
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

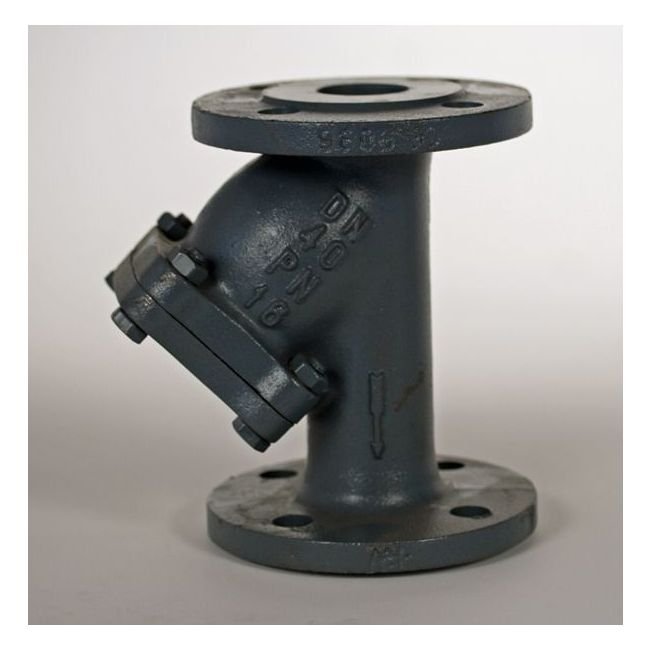

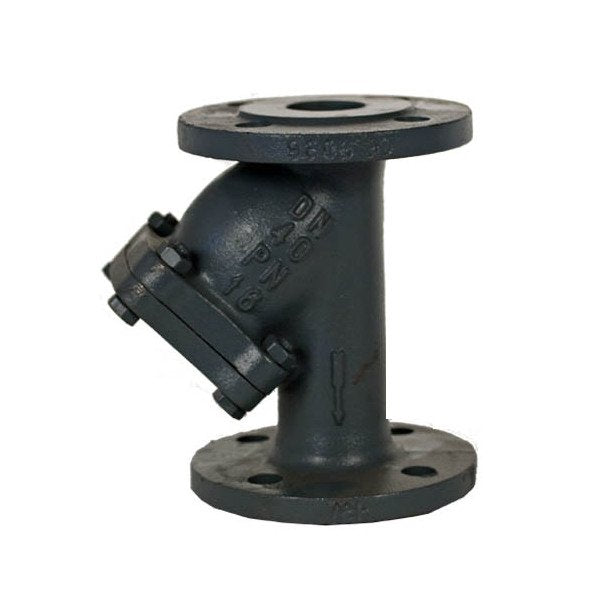

The DIN PN 16 Cast Steel Y-Strainer features a robust Cast Steel body with a Stainless Steel AISI 304 Strainer, meeting industry standards for durability and efficiency. With a Face to Face dimension according to DIN 3202-F1 and Flanges compliant with DIN2501-PN16, this Y-Strainer ensures reliable performance and ease of installation. The 8-hole design, 24.0 kg weight, and precise dimensions make it ideal for various hydraulic applications, offering superior filtration and seamless functionality.
Product Specifications
Specifications Body Material
Cast Steel

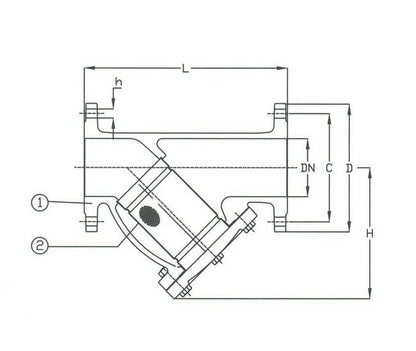

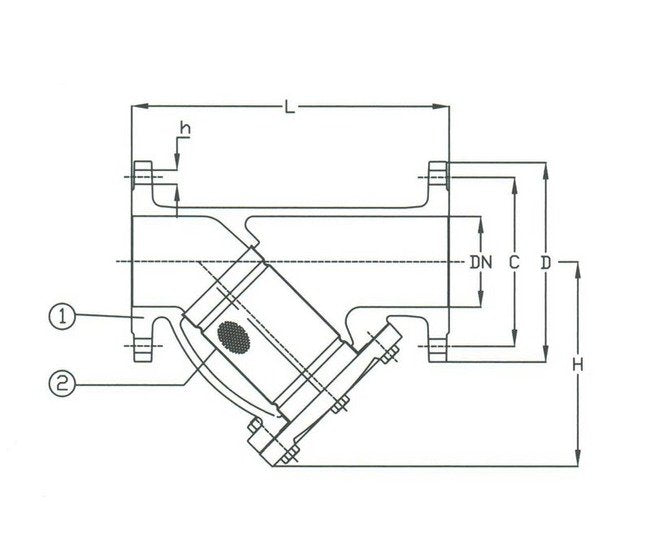

Specifications C
160 mm
Specifications D
200 mm
Specifications H
170 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
310 mm
Specifications Number Of Holes
8
Specifications Size
080
Specifications T
20 mm
Specifications Weight
24.0 kg
