DIN PN 16 Cast Steel Y-Strainers
DIN PN 16 Cast Steel Y-Strainers
SKU:VAL-0be222
Durable DIN PN 16 Cast Steel Y-Strainers for effective debris filtration in pipelines.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
DIN PN 16 Cast Steel Y-Strainers
$199.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Steel Y-Strainers
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

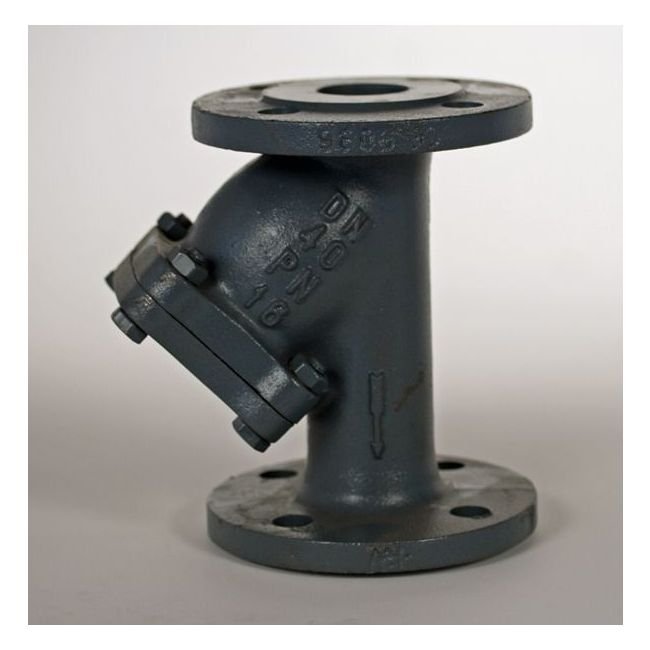

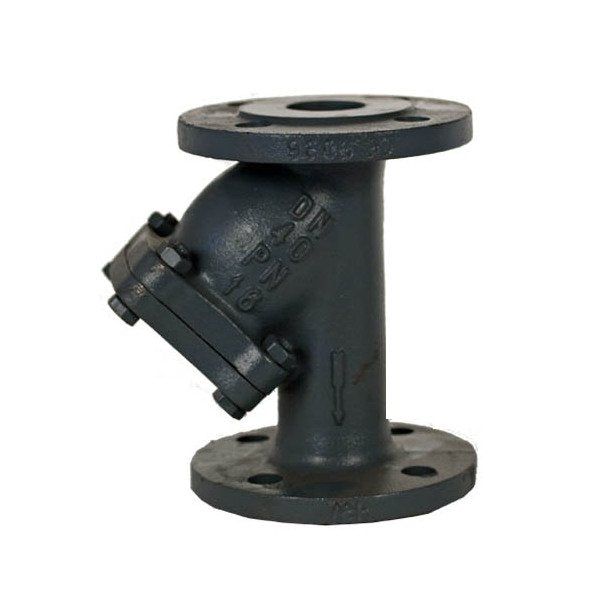

The DIN PN 16 Cast Steel Y-Strainers are built to withstand demanding industrial environments. Constructed with GSG25N2 cast steel bodies and AISI 304 stainless steel strainers, these Y-strainers offer exceptional durability and corrosion resistance. Designed to DIN standards for precise performance, with a face-to-face dimension according to DIN 3202-F1 and flanges meeting DIN2501-PN16 specifications. With a compact design and a weight of 8.0 kg, these strainers are ideal for ensuring debris-free fluid flow in pipelines.

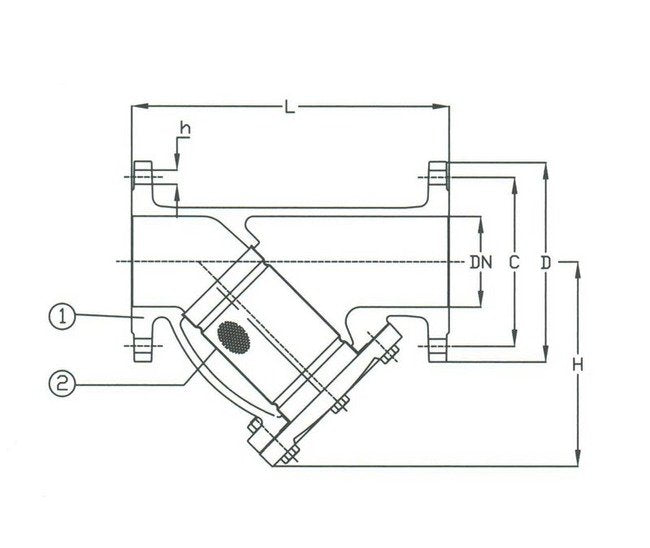

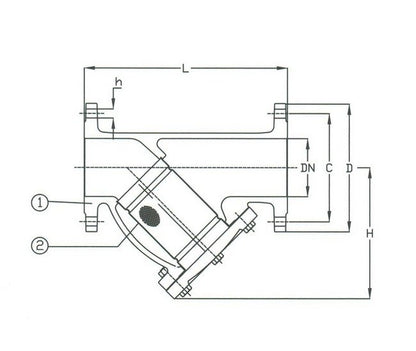

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
100 mm
Specifications D
140 mm
Specifications H
90 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
180 mm
Specifications Number Of Holes
4
Specifications Size
032
Specifications T
16 mm
Specifications Weight
8.0 kg
