DIN PN 16 Cast Steel Y-Strainers
DIN PN 16 Cast Steel Y-Strainers
SKU:VAL-67463a
Premium DIN PN 16 Cast Steel Y-Strainers for industrial filtration needs. Durable, reliable, and compliant with DIN standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN 16 Cast Steel Y-Strainers
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Cast Steel Y-Strainers
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

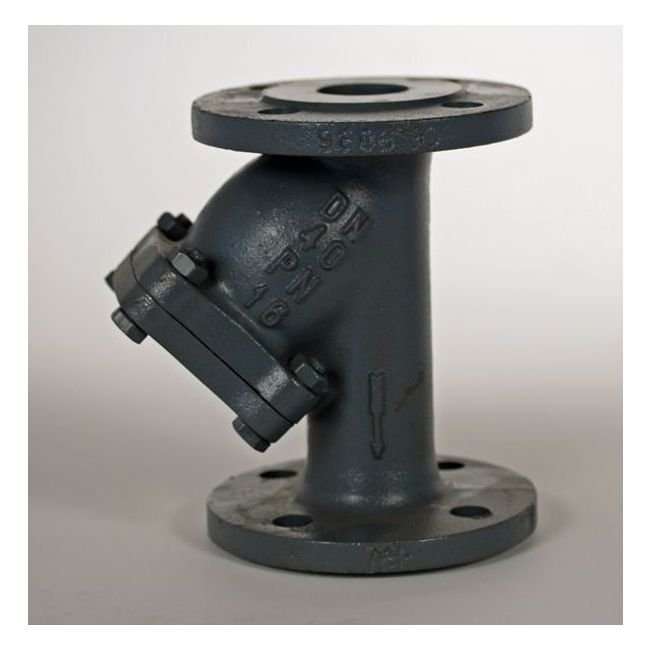

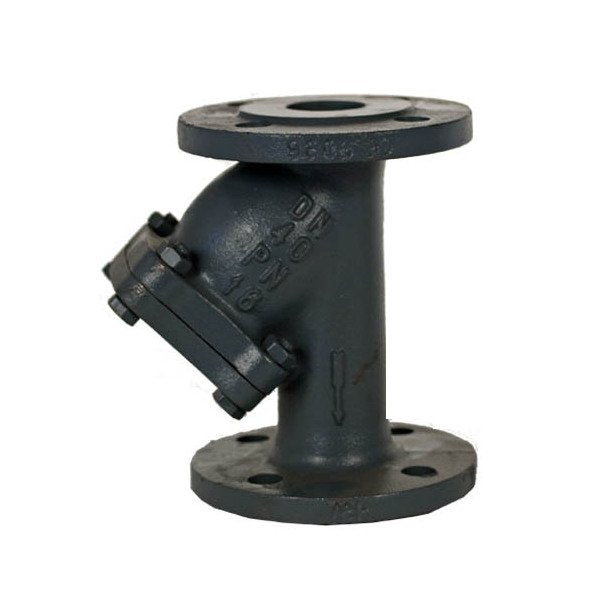

The DIN PN 16 Cast Steel Y-Strainers are precision-engineered to deliver high performance in demanding industrial environments. Constructed with GSG25N2 Cast Steel body and AISI 304 Stainless Steel strainer, these Y-Strainers meet DIN 3202-F1 Face to Face and DIN2501-PN16 Flange standards. With a size of 100, these strainers offer exceptional hydraulic inspection capabilities and a robust design that ensures durability and reliability. Ideal for applications requiring efficient filtration and protection for downstream equipment.
Ready to Grow Without Cash Flow Constraints?

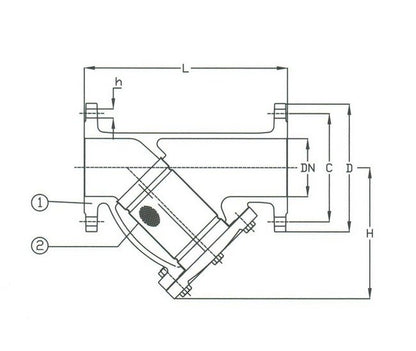

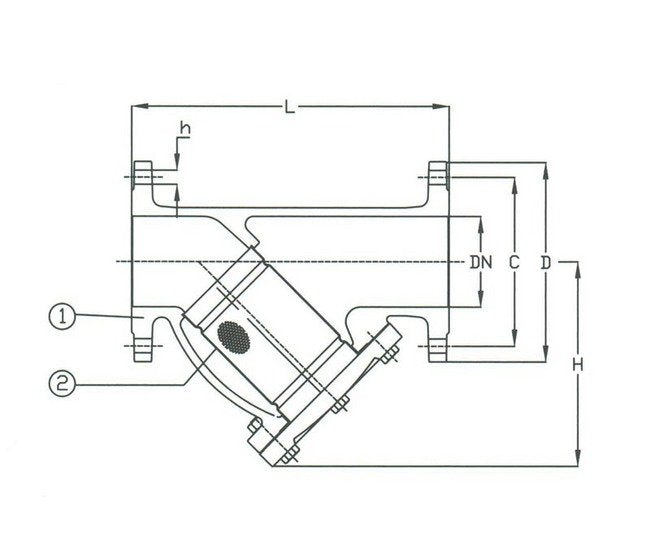

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
180 mm
Specifications D
220 mm
Specifications H
220 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
350 mm
Specifications Number Of Holes
8
Specifications Size
100
Specifications T
20 mm
Specifications Weight
35 kg
