DIN PN 16 Ductile Iron Angle Valve

Name: DIN PN 16 Ductile Iron Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-b0bfde
Price: 189.99 USD
Availability: OutOfStock

SKU:VAL-b0bfde

Durable DIN PN 16 Ductile Iron Angle Valve designed for industrial use, with corrosion-resistant materials and precise control.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 16 Ductile Iron Angle Valve is a high-quality valve designed for industrial applications. Constructed with durable materials like ductile iron, brass, and stainless steel, this valve ensures longevity and reliable performance. It features a corrosion-resistant disc and seat, making it ideal for hydraulic systems. With compliance to DIN 17672 standards and ISO5752 Series 8 specifications, this valve offers precise control and efficient operation. The flanges meet DIN2501-PN16 requirements, guaranteeing compatibility and easy installation.

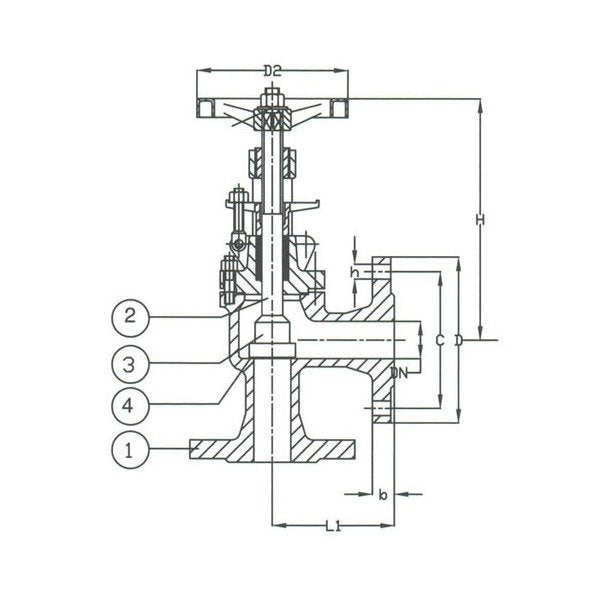

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

85 mm

Specifications Connection

Flanged Drilled

Specifications D

115 mm

Specifications D2

125 mm

Specifications Disc Material

Stainless Steel

Specifications H

160 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755418

Specifications L1

100 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

025

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

5.5 kg
