DIN PN 16 Ductile Iron Globe Valve
DIN PN 16 Ductile Iron Globe Valve
SKU:VAL-274963
Premium DIN PN 16 Ductile Iron Globe Valve for precise fluid control in industrial applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
DIN PN 16 Ductile Iron Globe Valve
$279.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Ductile Iron Globe Valve
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

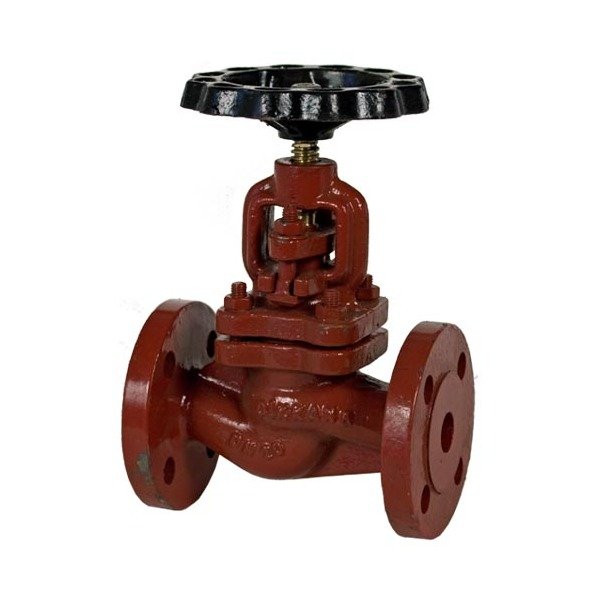

The DIN PN 16 Ductile Iron Globe Valve is a high-quality valve suitable for diverse industrial applications. Constructed with durable Ductile Iron body, Stainless Steel seat, and disc, this valve ensures reliable performance and longevity. Designed to meet ISO5752 standards, it offers precise control over fluid flow. The Handwheel actuator allows for manual operation, making it versatile for different settings.

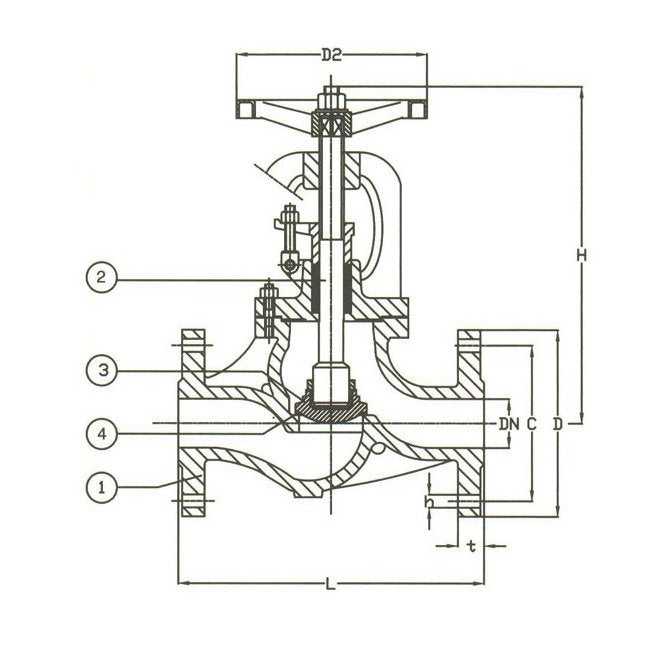

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
375 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
350 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
38.5 kg
