DIN PN 16 Wafer Check Valves with Stainless Steel Disc
DIN PN 16 Wafer Check Valves with Stainless Steel Disc
SKU:VAL-eacf8c
High-performance DIN PN 16 Wafer Check Valve for reliable hydraulic operations
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
DIN PN 16 Wafer Check Valves with Stainless Steel Disc
$279.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Wafer Check Valves with Stainless Steel Disc
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 16 Wafer Check Valve, featuring a Carbon Steel body and Viton seat, is designed for hydraulic applications requiring reliability and durability. The Stainless Steel AISI 316L disc and arm ensure corrosion resistance and longevity. Compliant with DIN2501-PN16 standards, this valve is ideal for industrial settings seeking secure flanged connections and efficient valve operations.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Carbon Steel

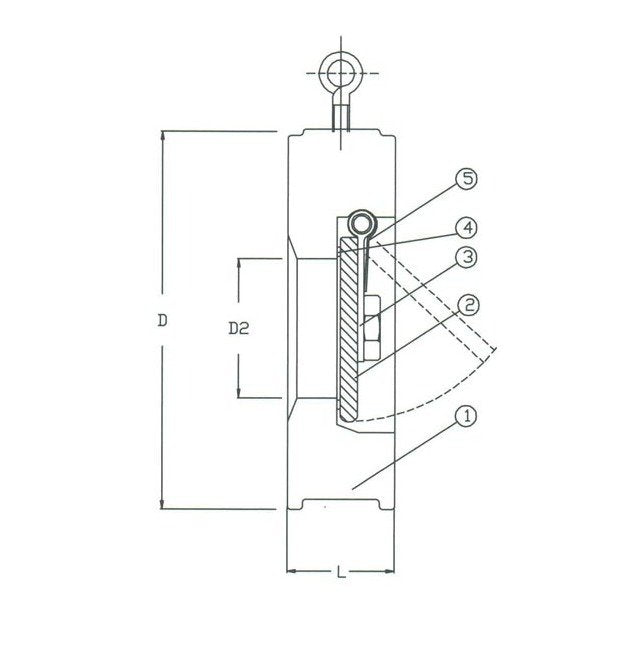

Specifications D
331 mm
Specifications D2
194 mm
Specifications Disc Material
Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
755968
Specifications L
79 mm
Specifications Seat Material
Synthetic Material
Specifications Size
250
Specifications Stem Material
Stainless Steel
Specifications Weight
23.6 kg
