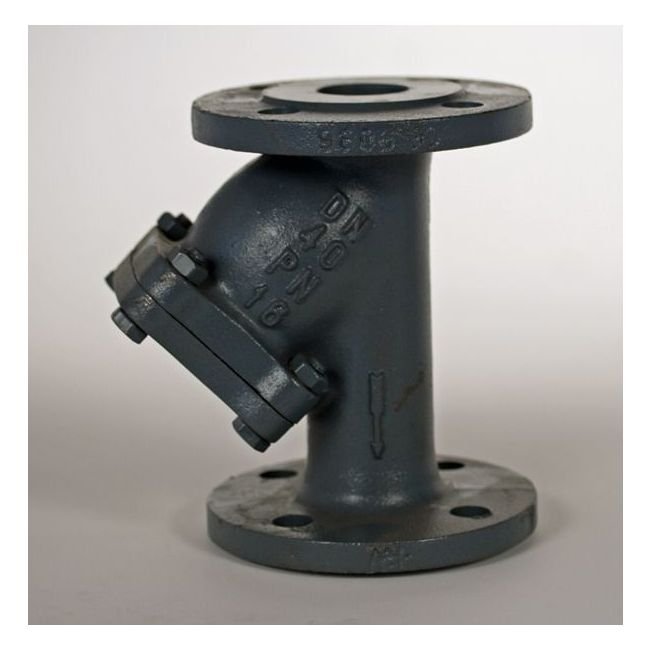

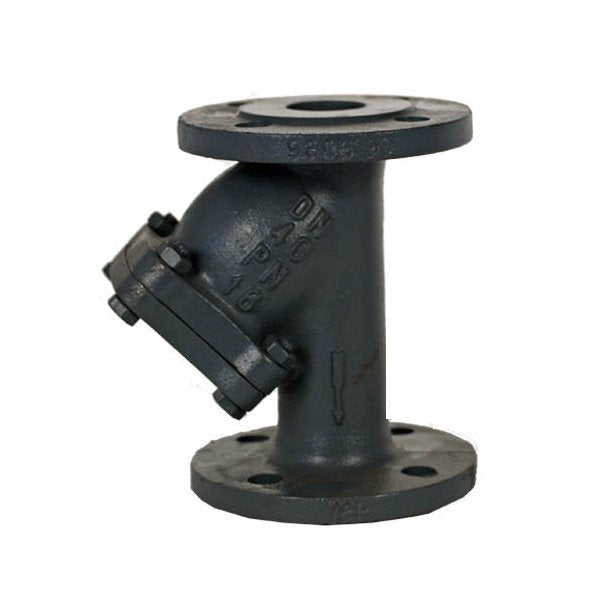

DIN PN 16 Y-Strainers, Cast Iron Valve
DIN PN 16 Y-Strainers, Cast Iron Valve
SKU:VAL-3d1706
Reliable DIN PN 16 Y-Strainers, Cast Iron Valve for efficient fluid filtration in institutional systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DIN PN 16 Y-Strainers, Cast Iron Valve
$49.99
Quantity: 1
Claim Your Seller Account
DIN PN 16 Y-Strainers, Cast Iron Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 16 Y-Strainers, Cast Iron Valve is a robust solution for filtering debris in fluid systems. Constructed with a durable cast iron body and a stainless steel strainer, this valve ensures reliable performance and longevity. Compliant with DIN 3202-F1 face to face dimensions and DIN2501-PN16 flange standards, it meets the stringent requirements of institutional applications, providing efficient filtration and protection for downstream components.
Ready to Grow Without Cash Flow Constraints?

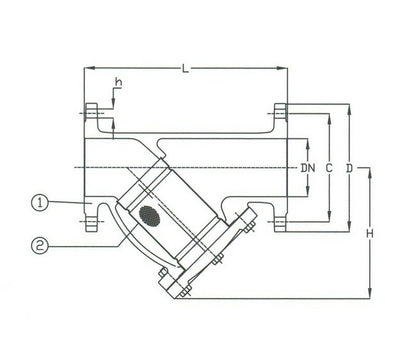

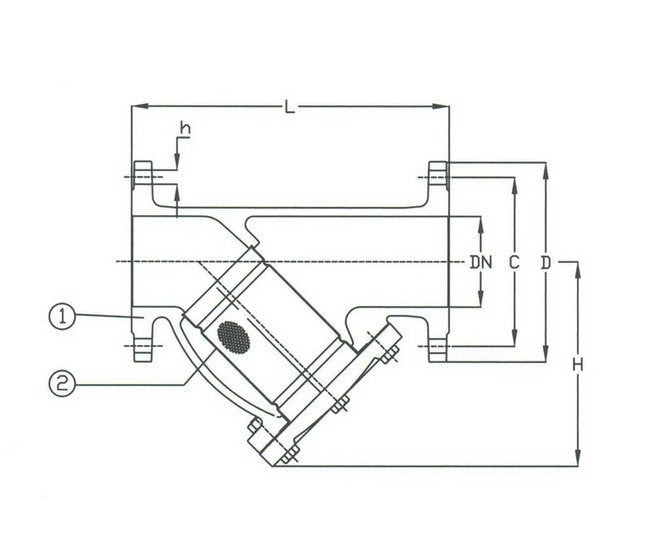

Product Specifications
Specifications Body Material
Cast Iron
Specifications C
65 mm
Specifications D
95 mm
Specifications H
75 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
130 mm
Specifications Number Of Holes
4
Specifications Size
015
Specifications T
14 mm
Specifications Weight
3.5 kg
