DIN PN 160 Cast Steel Globe Regular Valve
DIN PN 160 Cast Steel Globe Regular Valve
SKU:VAL-c81f6f
Premium DIN PN 160 Cast Steel Valve for industrial applications. ISO & DIN2501-PN160 compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN PN 160 Cast Steel Globe Regular Valve
$899.99
Quantity: 1
Claim Your Seller Account
DIN PN 160 Cast Steel Globe Regular Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 160 Cast Steel Globe Regular Valve is a high-performance industrial valve designed for critical applications. With a cast steel body, stellited disc, and stainless steel seat, this valve ensures durability and corrosion resistance. Its compliance with ISO standards and DIN2501-PN160 flange specifications makes it ideal for government and institutional procurement needs.

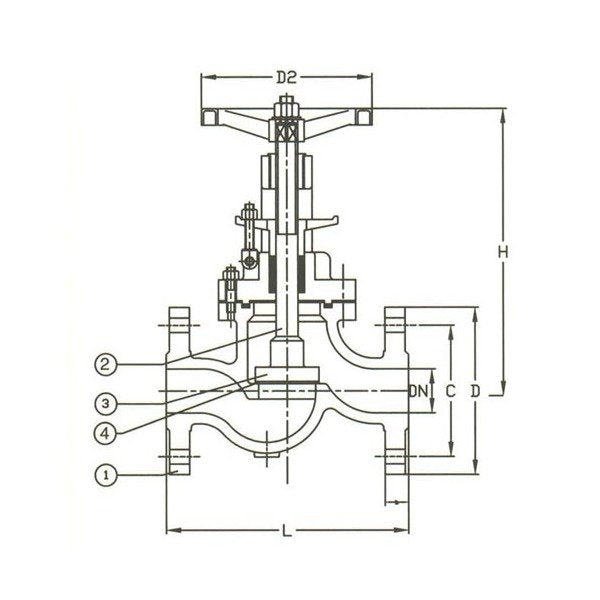

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
265 mm
Specifications D2
300 mm
Specifications Disc Material
Stellited
Specifications H
580 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications Impaissa Code
755440
Specifications L
430 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stellite
Specifications T
40 mm
Specifications Weight
106 kg
