DIN PN 160 Cast Steel Globe Regular Valve - 125 Size
DIN PN 160 Cast Steel Globe Regular Valve - 125 Size
SKU:VAL-e9b1db
Reliable DIN PN 160 Cast Steel Valve for industrial applications, meets ISO and DIN standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
DIN PN 160 Cast Steel Globe Regular Valve - 125 Size
$699.99
Quantity: 1
Claim Your Seller Account
DIN PN 160 Cast Steel Globe Regular Valve - 125 Size
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 160 Cast Steel Globe Regular Valve is a robust and reliable valve designed for industrial applications. Constructed with Cast Steel body, Stellite disc, and Stainless Steel seat, this valve ensures durability and efficient performance. With a Handwheel actuator and Flanged Drilled connection, it offers ease of operation and installation. Meeting ISO5752-F1 and DIN2501-PN160 standards, this valve is ideal for institutions requiring high-quality valves for critical operations.

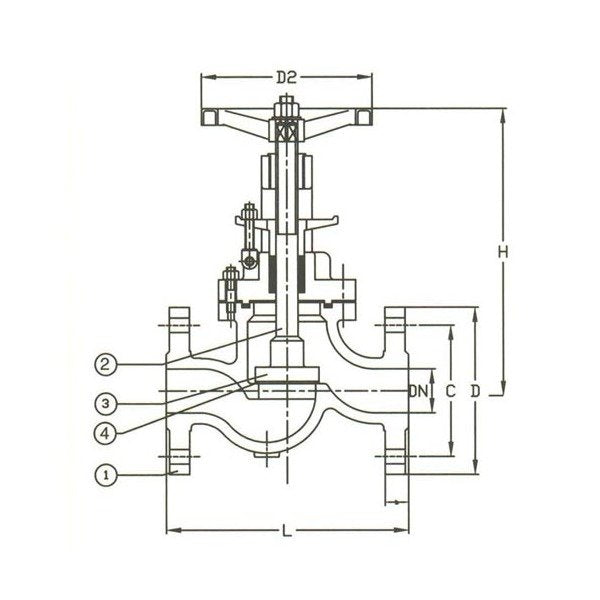

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
250 mm
Specifications Connection
Flanged Drilled
Specifications D
315 mm
Specifications D2
420 mm
Specifications Disc Material
Stellited
Specifications H
600 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications L
500 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
125
Specifications Stem Material
Stellite
Specifications T
44 mm
Specifications Weight
168 kg
