DIN PN 160 Cast Steel Globe SDNR Valve
DIN PN 160 Cast Steel Globe SDNR Valve
SKU:VAL-678c04
Premium DIN PN 160 Cast Steel Globe Valve with stellited disc and seat, stainless steel stem, and DIN2501-PN160 flange connections.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN 160 Cast Steel Globe SDNR Valve
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN 160 Cast Steel Globe SDNR Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

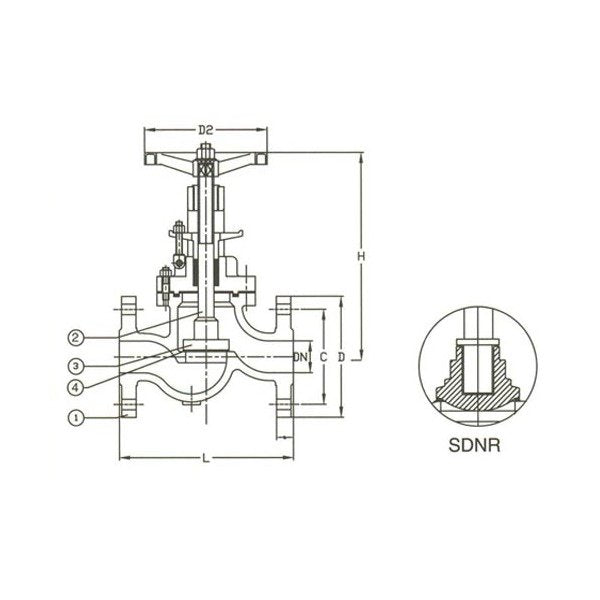

The DIN PN 160 Cast Steel Globe SDNR Valve is engineered with a GSC-25N2 cast steel body, stellited disc and seat, and a stainless steel stem for durability and corrosion resistance. Compliant with ISO5752 for optimal face-to-face dimensions and DIN2501-PN160 for reliable flange connections, this valve ensures precise hydraulic operations. With a compact design and handwheel actuators, it offers ease of use while meeting stringent industrial standards.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
75 mm
Specifications Connection
Flanged Drilled
Specifications D
105 mm
Specifications D2
150 mm
Specifications Disc Material
Stellited
Specifications H
250 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications L
210 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stellited
Specifications Size
015
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
9.0 kg
