DIN PN 160 Cast Steel Globe SDNR Valve - Size 125, Flanged Connection
DIN PN 160 Cast Steel Globe SDNR Valve - Size 125, Flanged Connection
SKU:VAL-d1c94e
High-performance DIN PN 160 Cast Steel Globe SDNR Valve for industrial applications. Durable materials, precise dimensions, and easy installation.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
DIN PN 160 Cast Steel Globe SDNR Valve - Size 125, Flanged Connection
$699.99
Quantity: 1
Claim Your Seller Account
DIN PN 160 Cast Steel Globe SDNR Valve - Size 125, Flanged Connection
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 160 Cast Steel Globe SDNR Valve is a robust valve designed for industrial applications. Constructed with high-quality materials including Cast Steel body, Stellited seat, and disc, and Stainless Steel stem, this valve ensures durability and longevity. With a handwheel actuator and flanged connection, it provides ease of operation and installation. Meeting ISO5752 standards for face-to-face dimensions and DIN2501-PN160 for flanges, this valve guarantees precise performance and seamless integration in industrial settings.

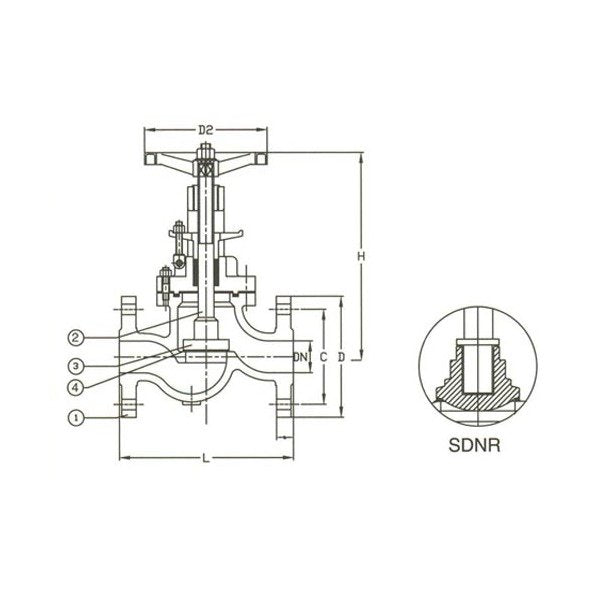

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
250 mm
Specifications Connection
Flanged Drilled
Specifications D
315 mm
Specifications D2
420 mm
Specifications Disc Material
Stellited
Specifications H
600 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications L
500 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stellited
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications T
44 mm
Specifications Weight
168 kg
