DIN PN 40 Cast Steel Angle Lift Check Valve
DIN PN 40 Cast Steel Angle Lift Check Valve
SKU:VAL-461016
Durable DIN PN 40 Cast Steel Lift Check Valve for reliable hydraulic applications. Compliant with DIN standards.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Angle Lift Check Valve
$329.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Angle Lift Check Valve
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Lift Check Angle Pattern Valve is engineered for durability and reliability. With a body made of GSC-25N2 Cast Steel, stainless steel disc and seat (AISI 410), this valve ensures long-lasting performance in hydraulic applications. Compliant with DIN standards, it features a Handwheel actuator and Flanged Drilled connection for easy installation. Perfect for industrial use, this valve guarantees efficient operation and minimal maintenance requirements.

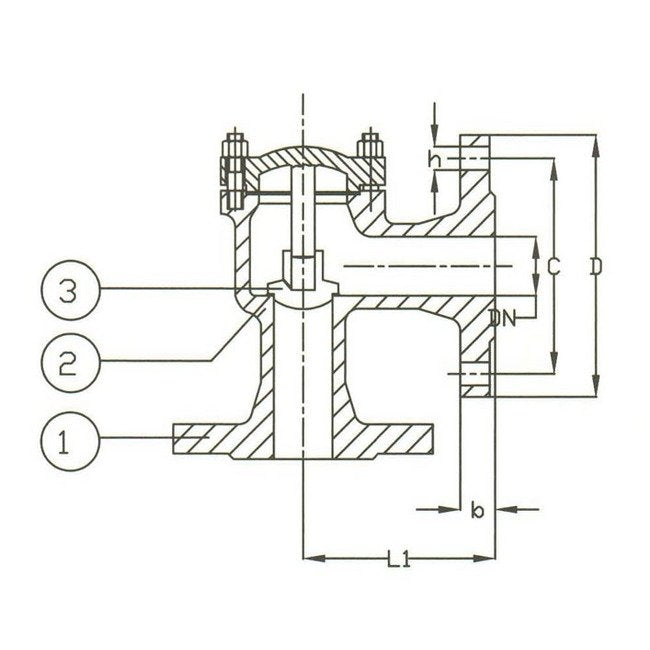

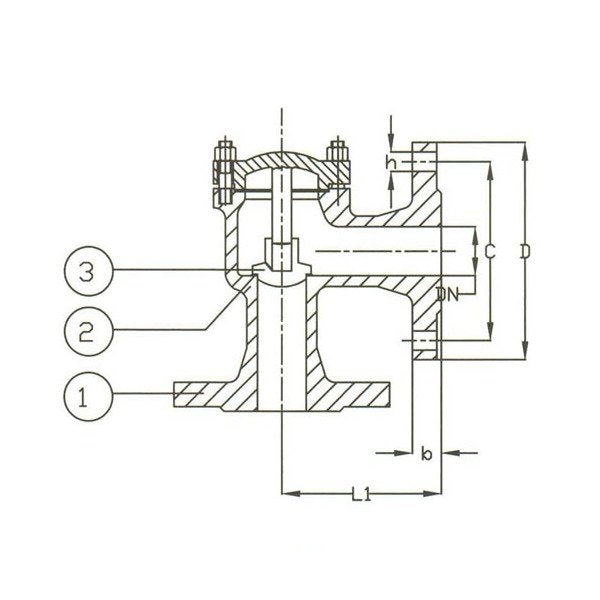

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
145 mm
Specifications Connection
Flanged Drilled
Specifications D
185 mm
Specifications Disc Material
Stainless Steel
Specifications H
18 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
145 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
065
Specifications Stem Material
Stainless Steel
Specifications T
22 in
Specifications Weight
21 kg
