DIN PN 40 Cast Steel Angle SDNR Valve
DIN PN 40 Cast Steel Angle SDNR Valve
SKU:VAL-1d601a
Reliable DIN PN 40 Cast Steel Angle SDNR Valve for industrial applications. Durable materials, precise specifications, and manual control.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Angle SDNR Valve
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Angle SDNR Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Angle SDNR Valve offers durability and reliability for various industrial applications. Constructed with GSC-25N2 Cast Steel body, Stainless Steel AISI 4103 stem, AISI 4104 disc, and AISI 410 seat, this valve ensures long-term performance. With a size of 050 and flanges according to DIN2501-PN40 standards, it meets the strict requirements of institutional and government procurement. The handwheel actuator provides manual control, making it suitable for different operational needs.

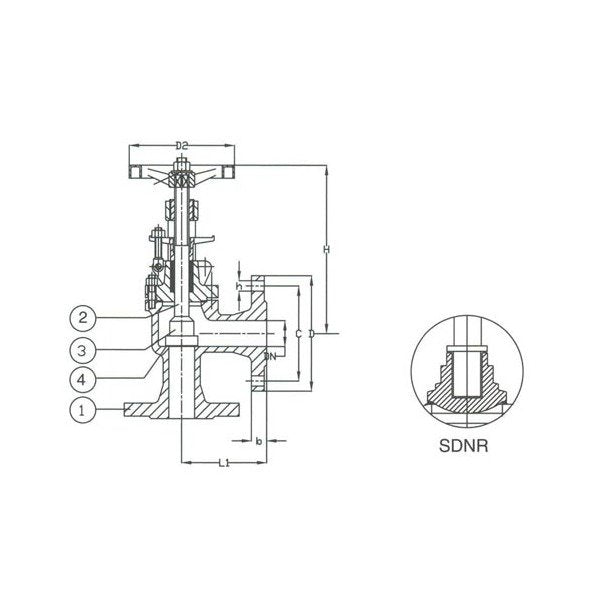

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D2
150 mm
Specifications Disc Material
Stainless Steel
Specifications H
225 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
125 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
050
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
14.40 kg
