DIN PN 40 Cast Steel Angle SDNR Valve 025 Size
DIN PN 40 Cast Steel Angle SDNR Valve 025 Size
SKU:VAL-111db8
High-performance DIN PN 40 Cast Steel Angle Valve for industrial fluid control.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Angle SDNR Valve 025 Size
$289.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Angle SDNR Valve 025 Size
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

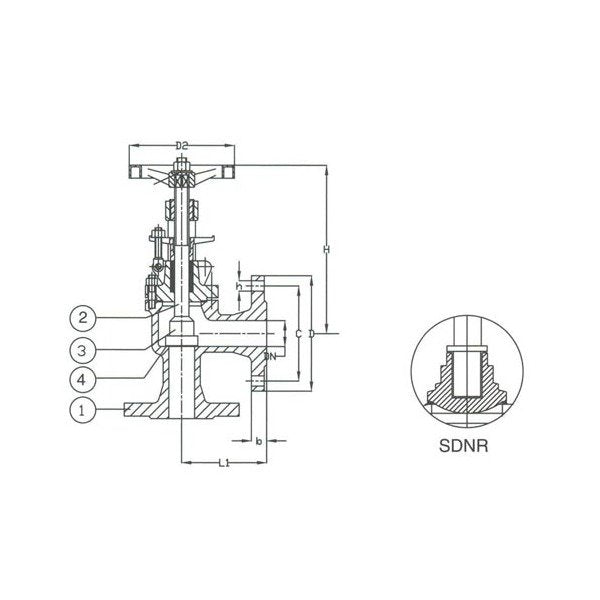

The DIN PN 40 Cast Steel Angle SDNR Valve is designed for optimal performance and durability in industrial settings. Constructed with Cast Steel body, Stainless Steel stem, disc, and seat, this valve ensures reliable operation under high pressure. With precise engineering meeting ISO5752 Series 8 standards and DIN2501-PN40 flanges, it delivers efficiency and longevity. Ideal for fluid control applications, the valve features Handwheel actuators and Flanged Drilled connection for ease of use and installation.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
160 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
100 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications T
18 mm
Specifications Weight
7.9 kg
