DIN PN 40 Cast Steel Angle SDNR Valve - 125mm
DIN PN 40 Cast Steel Angle SDNR Valve - 125mm
SKU:VAL-f9b14f
Durable Cast Steel Angle Valve, DIN2501-PN40 compliant, suitable for industrial applications.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Angle SDNR Valve - 125mm
$749.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Angle SDNR Valve - 125mm
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

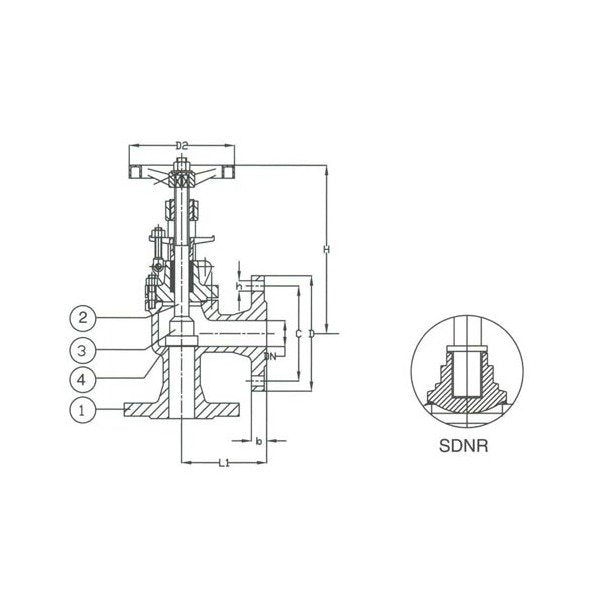

The DIN PN 40 Cast Steel Angle SDNR Valve is a robust solution designed for industrial applications requiring reliable performance. Constructed with high-quality Cast Steel body, Stainless Steel seat, disc, and stem, this valve ensures durability and corrosion resistance. The handwheel actuator allows for manual control, while the Flanged Drilled connection provides easy installation. With compliance to DIN2501-PN40 standards and precise dimensions according to ISO5752 Series 8, this valve meets stringent industry requirements for seamless integration and optimal functionality.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
220 mm
Specifications Connection
Flanged Drilled
Specifications D
270 mm
Specifications D2
250 mm
Specifications Disc Material
Stainless Steel
Specifications H
355 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
200 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications T
26 mm
Specifications Weight
59 kg
