DIN PN 40 Cast Steel Angle SDNR Valve - 200 Size

Name: DIN PN 40 Cast Steel Angle SDNR Valve - 200 Size
Brand: World Wide Metric, Inc.
SKU: VAL-219495
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-219495

High-quality DIN PN40 Cast Steel Angle SDNR Valve - Ideal for high-pressure applications

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 40 Cast Steel Angle SDNR Valve features a robust construction with a Cast Steel body, Stainless Steel stem, disc, and seat materials, ensuring durability and reliability in demanding industrial environments. With flanges meeting DIN2501-PN40 standards, this valve offers precise hydraulic control, supported by a Handwheel actuator for manual operation. Its dimensions conform to ISO5752 Series 8, making installation and maintenance seamless. Ideal for applications requiring high-pressure resistance, this valve provides optimal performance and longevity.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

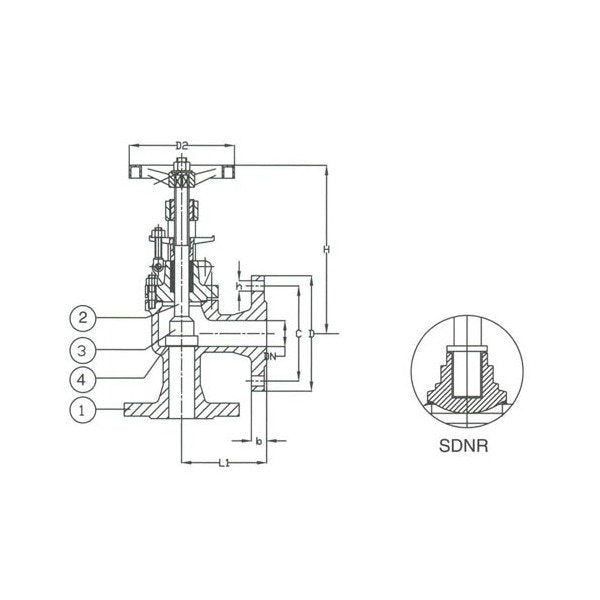

Specifications C

320 mm

Specifications Connection

Flanged Drilled

Specifications D

375 mm

Specifications D2

420 mm

Specifications Disc Material

Stainless Steel

Specifications H

500 mm

Specifications Hydraulic Inspection Body

37.5

Specifications Hydraulic Inspection Seat

Specifications L1

275 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

200

Specifications Stem Material

Stainless Steel

Specifications T

34 mm

Specifications Weight

148 kg
