The DIN PN 40 Cast Steel Angle SDNR Valve is a robust and reliable valve designed for industrial applications. With a cast steel body, stainless steel stem, disc, and seat, this valve ensures durability and corrosion resistance. The handwheel actuator provides easy manual operation, while the flanged connection allows for secure installation. Compliant with ISO5752 and DIN2501 PN40 standards, this valve meets the rigorous requirements of institutional and government procurement.

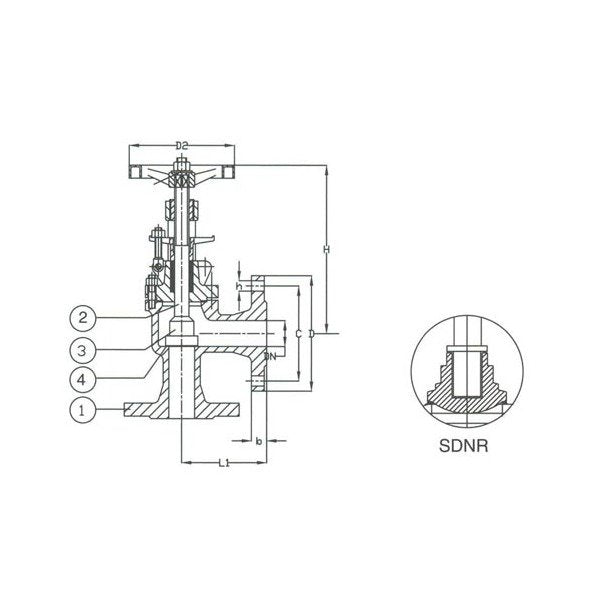

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
130 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
90 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
015
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
5.6 kg
