DIN PN 40 Cast Steel Angle Stop-Check Valve
DIN PN 40 Cast Steel Angle Stop-Check Valve
SKU:VAL-45894c
Durable and precise DIN PN 40 Cast Steel Angle Valve for reliable flow control in industrial settings.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Angle Stop-Check Valve
$389.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Angle Stop-Check Valve
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Angle Stop-Check Valve is a robust solution designed for industrial applications requiring reliable shut-off and check functionalities. Constructed with Cast Steel GSC-25N2 body and Stainless Steel AISI 410 components, this valve ensures durability and corrosion resistance. With precise ISO5752 Series 8 Face to Center dimensions and DIN2501-PN40 flanges, it guarantees seamless integration into existing systems, providing a secure and efficient flow control solution.

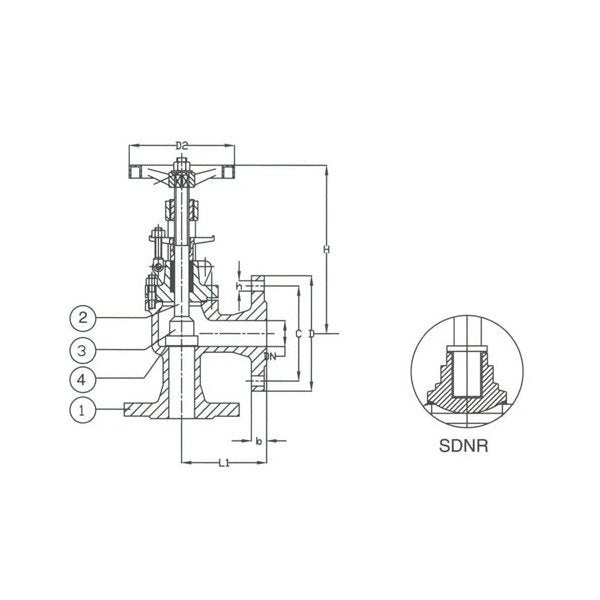

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
250 mm
Specifications Connection
Flanged Drilled
Specifications D
300 mm
Specifications D2
300 mm
Specifications Disc Material
Stainless Steel
Specifications H
385 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
225 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
150
Specifications Stem Material
Stainless Steel
Specifications T
28 mm
Specifications Weight
85.0 kg
