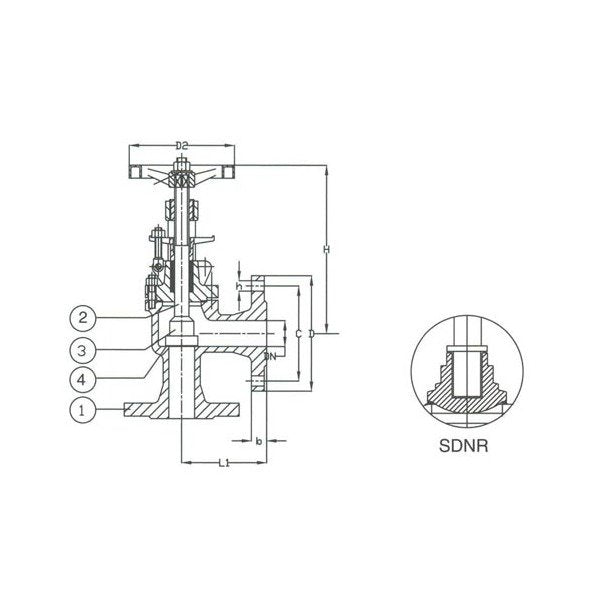

The PN 40 Cast Steel Angle SDNR Valve is built to endure rigorous hydraulic conditions with its cast steel body, stainless steel stem, disc, and seat. Compliant with ISO5752 Series 8 and DIN2501-PN40 standards, this valve ensures reliable performance in demanding industrial settings. Featuring precise dimensions, corrosion-resistant materials, and 8-hole flanges, it offers durability and efficiency for fluid control systems.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
190 mm
Specifications Connection
Flanged Drilled
Specifications D
235 mm
Specifications D2
250 mm
Specifications Disc Material
Stainless Steel
Specifications H
325 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
24 mm
Specifications Weight
44 kg
